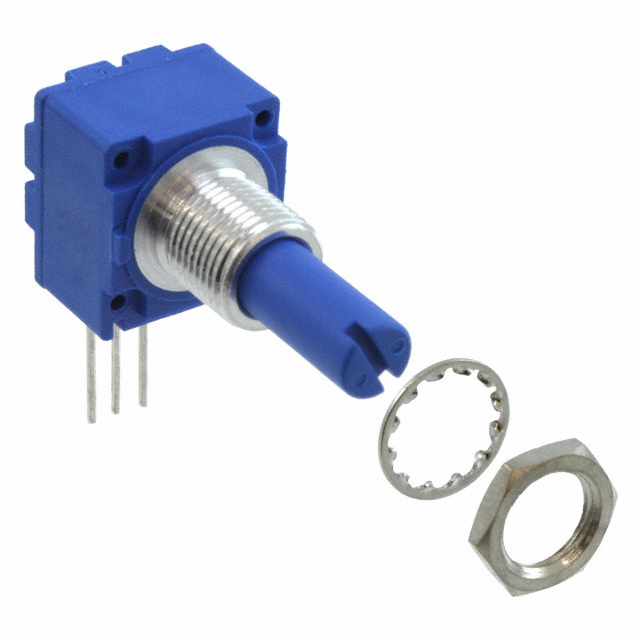

91A1D-B28-A15L

Active

Bourns Inc.

±10% ±150PPM/℃ 2W 10KΩ POTENTIOMETERS, VARIABLE RESISTORS ROHS

Search across all available documentation for this part.

Active

Bourns Inc.

±10% ±150PPM/℃ 2W 10KΩ POTENTIOMETERS, VARIABLE RESISTORS ROHS

Technical Specifications

Parameters and characteristics for this part

Part	Adjustment Type	Resistive Material	Taper	Actuator Type	Power (Watts)	Rotation	Resistance (Ohms)	Termination Style	Bushing Thread	Tolerance	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Number of Gangs	Number of Turns	Actuator Diameter	Actuator Diameter [diameter]	Temperature Coefficient	Actuator Length [z]	Actuator Length [z]	Resistance (Ohms)
Bourns Inc. 91A1D-B24-B15L	Side Adjustment	Conductive Plastic	Linear	Slotted	1 W	300 ░	10k	PC Pins	3/8-32	20 %	0.687 in	0.625 in	17.45 mm	15.88 mm	1	1	6.35 mm	0.25 in	1000 ppm/°C	19.05 mm	0.75 in
Bourns Inc. 91A1D-C24-A13L	Side Adjustment	Cermet	Linear	Flatted	2 W	300 ░		PC Pins	3/8-32	10 %	0.687 in	0.625 in	17.45 mm	15.88 mm	1	1	6.35 mm	0.25 in	150 ppm/°C	19.05 mm	0.75 in	5 kOhms
Bourns Inc. 91A1D-B24-B18L	Side Adjustment	Conductive Plastic	Linear	Slotted	1 W	300 ░		PC Pins	3/8-32	20 %	0.687 in	0.625 in	17.45 mm	15.88 mm	1	1	6.35 mm	0.25 in	1000 ppm/°C	19.05 mm	0.75 in	50 kOhms
Bourns Inc. 91A1D-B28-A15L	Side Adjustment	Cermet	Linear	Slotted	2 W	300 ░	10k	PC Pins	3/8-32	10 %	0.687 in	0.625 in	17.45 mm	15.88 mm	1	1	6.35 mm	0.25 in	150 ppm/°C	22.23 mm	0.875 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 2W PC Pins
