ASB03512MA-AF00

Obsolete

Delta Electronics

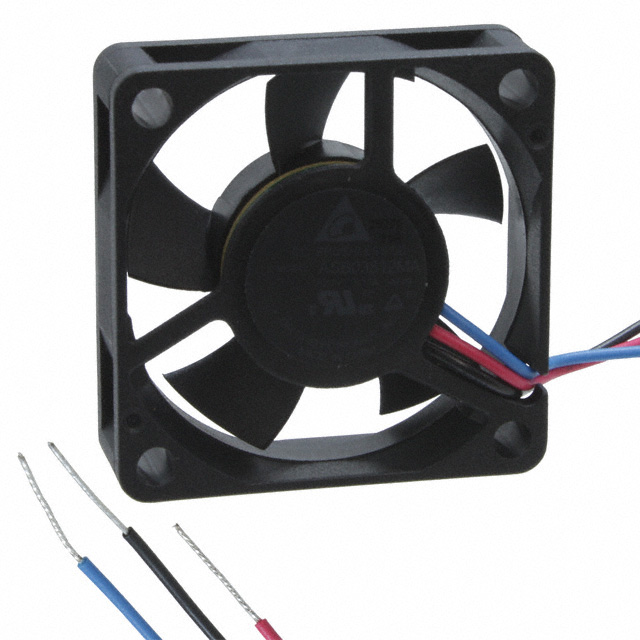

FAN AXIAL 35X10MM 12VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 35X10MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	ASB03512MA-AF00

Air Flow	0.126 m³/min
Air Flow	4.5 CFM
Approval Agency	cURus, CE, TUV
Bearing Type	Sleeve
Current Rating (Amps)	50 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	20000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	18.5 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	600 mW
RPM	5800 RPM
Size / Dimension [x]	35 mm
Size / Dimension [z]	35 mm
Static Pressure	0.079 in H2O
Static Pressure	19.6 Pa
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	7 V
Weight	0.022 lb
Weight	9.98 g
Width [y]	10 mm

Part	Size / Dimension [z]	Size / Dimension [x]	Features	Voltage - Rated	Air Flow	Air Flow	Noise	Material - Blade	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Power (Watts)	Fan Type	RPM	Weight	Weight	Lifetime @ Temp.	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Approval Agency	Bearing Type	Width [x]	Material - Frame	Termination	Static Pressure	Static Pressure	Width [y]	Air Flow
Delta Electronics ASB03512HB-F00	35 mm	35 mm	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	9.5 CFM	0.266 m³/min	37 dB	Plastic	70 °C	70 °C	-10 °C	-10 °C	1.32 W	Tubeaxial	11000 RPM	14.06 g	0.031 lb	30000 Hrs	5 VDC	13.8 VDC	110 mA	CE cURus TUV	Sleeve	15 mm	Plastic	3 Wire Leads
Delta Electronics ASB03512HA-AF00	35 mm	35 mm	Locked Rotor Protection Speed Sensor (Tach)	12 VDC		5.5 CFM	22 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	720 mW	Tubeaxial	7000 RPM	10.43 g	0.023 lb	20000 Hrs	7 V	13.8 VDC	60 mA	CE cURus VDE	Sleeve		Plastic	3 Wire Leads	27 Pa	0.108 in H2O	10 mm	0.154 m³/min
Delta Electronics ASB03512MA-AF00	35 mm	35 mm	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	4.5 CFM	0.126 m³/min	18.5 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	600 mW	Tubeaxial	5800 RPM	9.98 g	0.022 lb	20000 Hrs	7 V	13.8 VDC	50 mA	CE cURus TUV	Sleeve		Plastic	3 Wire Leads	19.6 Pa	0.079 in H2O	10 mm
Delta Electronics ASB03512MA-A	35 mm	35 mm		12 VDC	4.5 CFM	0.126 m³/min	18.5 dB(A)	Plastic	70 °C	70 °C	-10 °C	-10 °C	600 mW	Tubeaxial	5800 RPM	9.98 g	0.022 lb	20000 Hrs	7 V	13.8 VDC	50 mA	CE cURus TUV	Sleeve		Plastic	2 Wire Leads	19.6 Pa	0.079 in H2O	10 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 35mm L x 35mm H Sleeve 4.5 CFM (0.126m³/min) 3 Wire Leads
