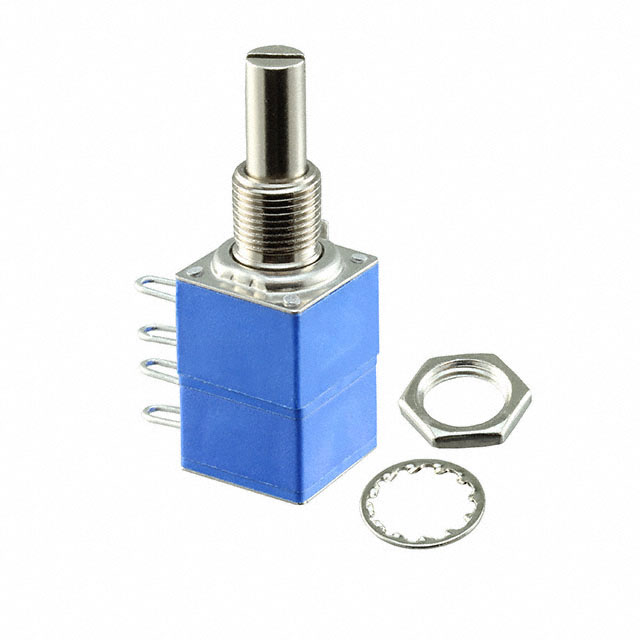

82A2A-B28-A15/A15L

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CERMET /TRAY PACKAGING ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

PANEL CONTROL - 5/8" (16MM) ST-CERMET /TRAY PACKAGING ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Gangs	Adjustment Type	Bushing Thread	Temperature Coefficient	Tolerance	Termination Style	Resistance (Ohms)	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Resistive Material	Actuator Type	Power (Watts)	Actuator Length [z]	Actuator Length [z]	Number of Turns	Taper	Actuator Diameter	Actuator Diameter [diameter]	Rotation	Resistance (Ohms)	Power (Watts)
Bourns Inc. 82A2A-B28-A15/A15L	2	User Defined	3/8-32	150 ppm/°C	10 %	Solder Hook	10k	0.625 in	15.88 mm	15.88 mm	0.625 in	Cermet	Slotted	1 W	22.23 mm	0.875 in	1	Linear	6.35 mm	0.25 in	300 ░
Bourns Inc. 82A2A-B28-A13/A13L	2	User Defined	3/8-32	150 ppm/°C	10 %	Solder Hook		0.625 in	15.88 mm	15.88 mm	0.625 in	Cermet	Slotted	1 W	22.23 mm	0.875 in	1	Linear	6.35 mm	0.25 in	300 ░	5 kOhms
Bourns Inc. 82A2A-B24-B15/B15L	2	User Defined	3/8-32	1000 ppm/°C	20 %	Solder Hook	10k	0.625 in	15.88 mm	15.88 mm	0.625 in	Conductive Plastic	Slotted	0.5 W	19.05 mm	0.75 in	1	Linear	6.35 mm	0.25 in	300 ░		0.5 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10k Ohm 2 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 1W Solder Hook
