X-NUCLEO-S2868A2
ActiveSUB-1 GHZ 868 MHZ RF EXPANSION BOARD BASED ON S2-LP RADIO FOR STM32 NUCLEO
Deep-Dive with AI
Search across all available documentation for this part.
X-NUCLEO-S2868A2
ActiveSUB-1 GHZ 868 MHZ RF EXPANSION BOARD BASED ON S2-LP RADIO FOR STM32 NUCLEO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | X-NUCLEO-S2868A2 | X-NUCLEO-S2868A2 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Transceiver | Transceiver |
| Platform | Nucleo | Nucleo |
| Type | RF | RF |
| Utilized IC / Part | S2-LP | S2-LP |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.00 | |
X-NUCLEO-S2868A2 Series
Sub-1 GHz 868 MHz RF expansion board based on S2-LP radio for STM32 Nucleo
| Part | Platform | Type | Contents | Function | Utilized IC / Part |
|---|---|---|---|---|---|
STMicroelectronics X-NUCLEO-S2868A2 | |||||
STMicroelectronics X-NUCLEO-S2868A2 | Nucleo | RF | Board(s) | Transceiver | S2-LP |
STMicroelectronics X-NUCLEO-S2868A2 |
Description
General part information
X-NUCLEO-S2868A2 Series

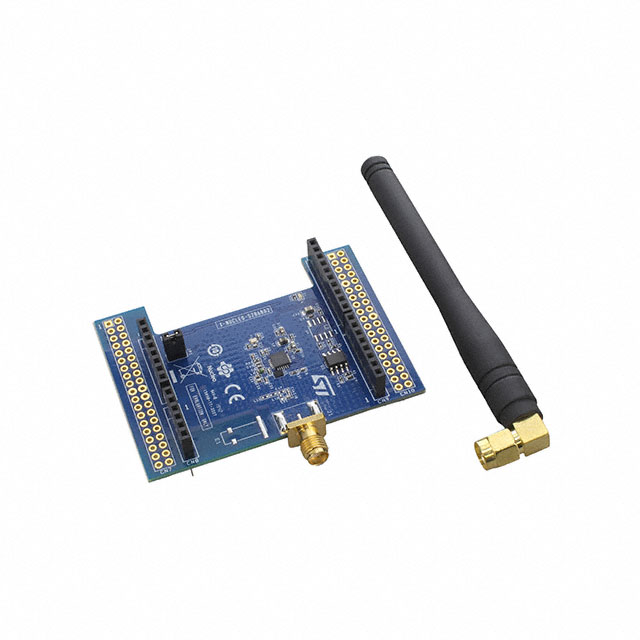

The X-NUCLEO-S2868A2 expansion board is based on the S2-LP ultra-low power RF transceiver and operates in the 868 MHz ISM frequency band.
The X-NUCLEO-S2868A2 interfaces with the STM32 Nucleo microcontroller via SPI connections and GPIO pins. You can change some of the GPIOs by mounting or removing the resistors.
The expansion board is compatible with ST morpho and Arduino UNO R3 connectors.
