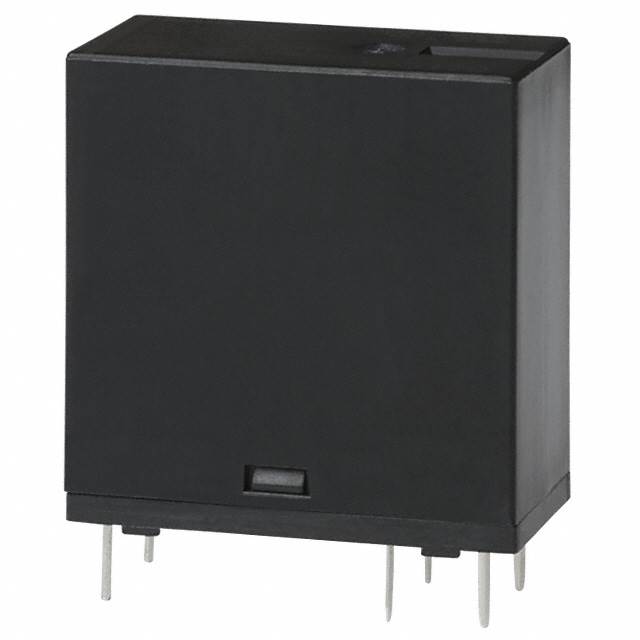

ALA2F24
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPST 3A 24V
Deep-Dive with AI
Search across all available documentation for this part.
ALA2F24
ObsoletePanasonic Electric Works
RELAY GEN PURPOSE DPST 3A 24V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALA2F24 |
|---|---|
| Approval Agency | TUV, VDE, CSA, UR |
| Coil Current | 22.1 mA |
| Coil Resistance | 1.09 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 3 A |
| Load - Max Switching [Max] | 375 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 18 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage | 125 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ALA2F Series
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
