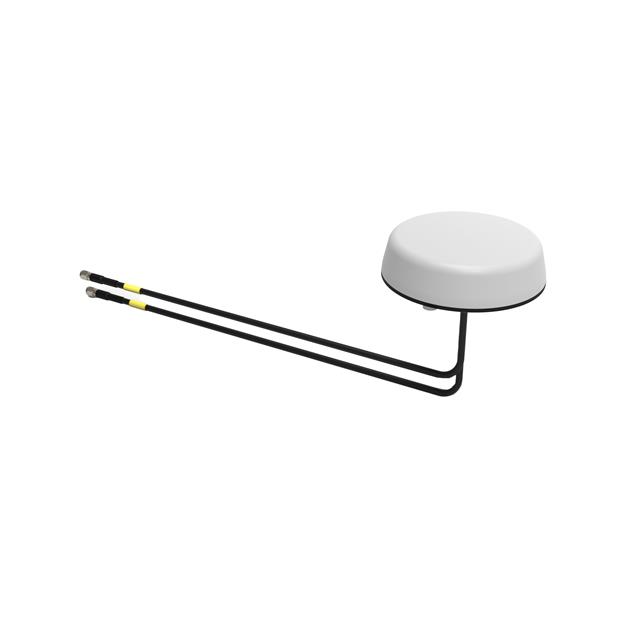

Specification	2344721-4

Antenna Type	Dome
Applications	LTE, Wi-Fi, WCDMA, UMTS
Features	Cable, 2m
Frequency (Band)	5.45 GHz
Frequency (Center)	2.44 GHz
Frequency Group	SHF, UHF
Frequency Group Maximum (UHF)	3 GHz
Frequency Group Minimum (SHF)	4 GHz
Frequency Group Minimum (UHF)	2 GHz
Frequency Range (Band 1) Maximum	2.485 GHz
Frequency Range (Band 1) Minimum	2.4 GHz
Frequency Range (Band 2) Maximum	6 GHz
Frequency Range (Band 2) Minimum	4.9 GHz
Gain	6 dBi, 4 dBi
Height (Max)	1.181 in
Ingress Protection	IP66
Mounting Type	Ceiling Mount
Number of Bands	2
Power - Max	10 VA
RF Family/Standard	WiFi, Cellular
Termination	N Type

2344721 Series

Part	Ingress Protection	Termination	Applications	Features	Frequency Range (Band 1) Minimum	Frequency Range (Band 2) Maximum	Frequency Range (Band 2) Minimum	Frequency Range (Band 1) Maximum	Number of Bands	Frequency Group Minimum (SHF)	Frequency Group	Frequency Group Maximum (UHF)	Frequency Group Minimum (UHF)	Power - Max	Gain	Antenna Type	RF Family/Standard	Frequency (Center)	Frequency (Band)	Height (Max)	Mounting Type
TE Connectivity AMP Connectors 2344721-1	IP66	RP-SMA	LTE UMTS WCDMA Wi-Fi	2m Cable	2.4 GHz	6 GHz	4.9 GHz	2.485 GHz	2	4 GHz	SHF UHF	3 GHz	2 GHz	10 VA	4 dBi 6 dBi	Dome	Cellular WiFi	2.44 GHz	5.45 GHz	1.181 in	Ceiling Mount
TE Connectivity AMP Connectors 2344721-4	IP66	N Type	LTE UMTS WCDMA Wi-Fi	2m Cable	2.4 GHz	6 GHz	4.9 GHz	2.485 GHz	2	4 GHz	SHF UHF	3 GHz	2 GHz	10 VA	4 dBi 6 dBi	Dome	Cellular WiFi	2.44 GHz	5.45 GHz	1.181 in	Ceiling Mount
