W7281-7PG-P-3ES

Active

Conxall/Switchcraft

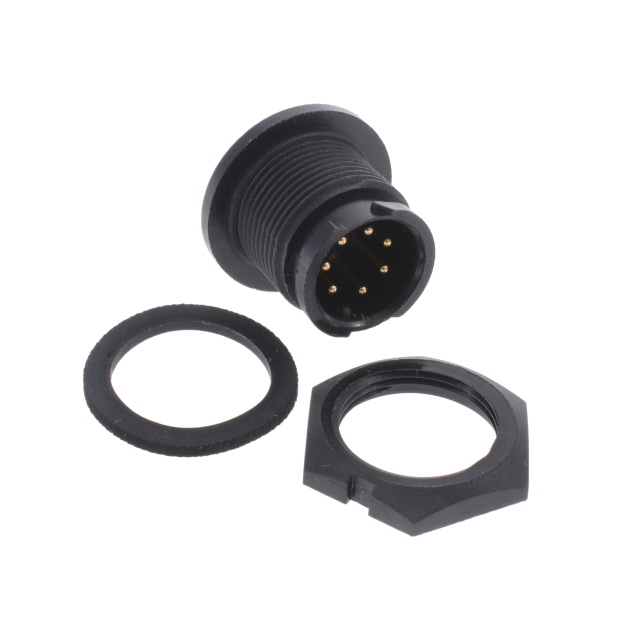

CONN RCPT MALE 7POS GOLD SOLDER

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 7POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	W7281-7PG-P-3ES

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Thermoplastic
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	UV Resistant
Ingress Protection	IP68, IP66, IP67
Insert Material	Thermoplastic
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	7
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	300 VAC

CONN RCPT MALE 7POS GOLD SOLDER

Part	Termination	Number of Positions	Fastening Type	Backshell Material, Plating	Contact Material	Orientation	Primary Material	Color	Voltage Rating	Ingress Protection	Current Rating (Amps)	Applications	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Connector Type	Mounting Feature	Insert Material	Contact Finish - Mating
Conxall/Switchcraft W7281-7PG-P-3ES	Solder	7	Bayonet Lock	Thermoplastic	Copper Alloy	Keyed	Plastic	Black	300 VAC	IP66, IP67, IP68	Varies by Wire Gauge	Automotive, Communication Systems, Instrumentation	Unshielded	85 °C	-40 °C	UV Resistant	Panel Mount, Through Hole	Male Pins, Receptacle	Bulkhead - Front Side Nut	Thermoplastic	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

No documents available
