M3DYK-5018R

Active

IDC CABLE - MKR50K/MC50M/MPD50K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3302 Series +1

M3DYK-5018R

Active

IDC CABLE - MKR50K/MC50M/MPD50K

Deep-Dive with AI

DocumentsDatasheet 3302 Series +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.02
		10	$ 33.28
		25	$ 30.19
		50	$ 28.10
		100	$ 26.21
		250	$ 23.98

Description

General part information

M3DYK Series

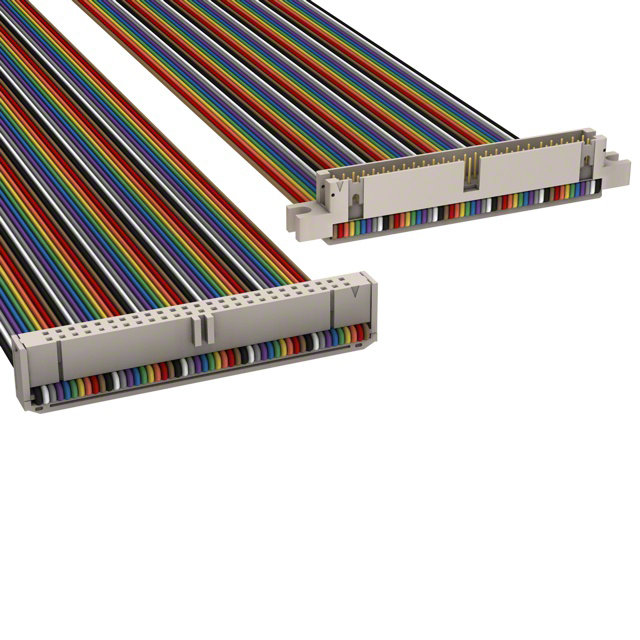

50 Position Cable Assembly Rectangular Socket to Plug 1.50' (457.20mm)

Documents

Technical documentation and resources

Datasheet

3302 Series

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M3DYK-5018R	M3DYK Series

Cable Termination	IDC	IDC
Color	Ribbon, Multiple	Multiple, Twisted Pair (Flat), Ribbon, Multiple
Connector Type	Socket to Plug	Socket to Plug
Contact Finish	Gold	Gold
Contact Finish Thickness	0.76 Ám	0.76 Ám
Contact Finish Thickness	30 Áin	30 Áin
Features	Flange, Strain Relief (Socket), Polarizing Key, Strain Relief (Plug)	Flange, Strain Relief (Socket), Polarizing Key, Strain Relief (Plug)
Length	-	1.52 - 508 mm
Length	-	6 "
Length	-	0.5 '
Length	-	1.67 - 5 '
Length [x]	457.2 mm	1.02 - 914.4 m
Length [x]	1.5 ft	1.5 - 3.34 ft
Number of Positions	50	10 - 60
Number of Positions	-	16
Number of Rows	2	2
Pitch - Cable	0.05 "	0.05 "
Pitch - Cable	1.27 mm	1.27 mm
Pitch - Connector	0.1 in	0.1 in
Pitch - Connector	2.54 mm	2.54 mm
Shielding	Unshielded	Unshielded

M3DYK Series

IDC CABLE - MKR16K/MC16F/MPD16K

Part	Color	Pitch - Connector	Pitch - Connector	Number of Positions	Shielding	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Length [x]	Length [x]	Pitch - Cable	Pitch - Cable	Cable Termination	Number of Rows	Length	Length	Length	Number of Positions
3M M3DYK-1640K	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm	16	Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug	1.02 m	3.34 ft	0.05 "	1.27 mm	IDC	2
3M M3DYK-6006R	Multiple, Ribbon	0.1 in	2.54 mm		Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug			0.05 "	1.27 mm	IDC	2	152.4 mm	6 "	0.5 '	60
3M M3DYK-5040K	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm		Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug	1.02 m	3.34 ft	0.05 "	1.27 mm	IDC	2				50
3M M3DYK-3436J		0.1 in	2.54 mm		Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug	914.4 mm	3 ft	0.05 "	1.27 mm	IDC	2				34
3M M3DYK-4018J		0.1 in	2.54 mm		Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug	457.2 mm	1.5 ft	0.05 "	1.27 mm	IDC	2				40
3M M3DYK-2036J		0.1 in	2.54 mm		Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug	914.4 mm	3 ft	0.05 "	1.27 mm	IDC	2				20
3M M3DYK-2040K	Multiple, Twisted Pair (Flat)	0.1 in	2.54 mm		Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug	1.02 m	3.34 ft	0.05 "	1.27 mm	IDC	2				20
3M M3DYK-2606J		0.1 in	2.54 mm		Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug			0.05 "	1.27 mm	IDC	2	152.4 mm	6 "	0.5 '	26
3M M3DYK-5018R	Multiple, Ribbon	0.1 in	2.54 mm		Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug	457.2 mm	1.5 ft	0.05 "	1.27 mm	IDC	2				50
3M M3DYK-3418J		0.1 in	2.54 mm		Unshielded	Gold	Flange, Polarizing Key, Strain Relief (Plug), Strain Relief (Socket)	0.76 Ám	30 Áin	Socket to Plug	457.2 mm	1.5 ft	0.05 "	1.27 mm	IDC	2				34
