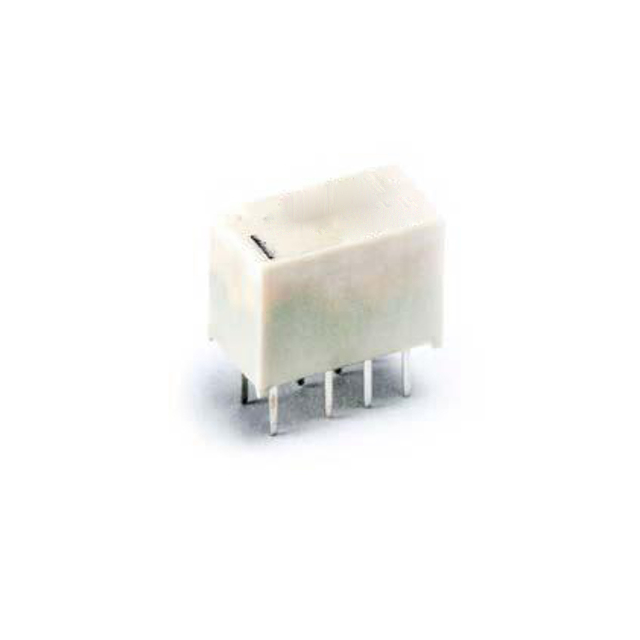

UA2-12NJ

Active

KEMET

RELAY GEN PURPOSE DPDT 1A 12V

Search across all available documentation for this part.

Active

KEMET

RELAY GEN PURPOSE DPDT 1A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Operate Time	Termination Style	Contact Form	Coil Resistance	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Voltage	Contact Rating (Current)	Release Time	Approval Agency	Contact Material	Relay Type	Coil Current	Load - Max Switching	Must Operate Voltage	Coil Type	Mounting Type	Switching Voltage
KEMET UA2-12NJ	2 ms	PC Pin	DPDT (2 Form C)	1030 Ohms	85 °C	-40 °C	1.2 VDC	12 VDC	1 A	1 ms	CSA TUV UL	Gold Alloy Silver Alloy	General Purpose	11.7 mA	220 W 250 VA	9 VDC	Non Latching	Through Hole	220 VDC 250 VAC
KEMET UA2-12SNU	2 ms	PC Pin	DPDT (2 Form C)	1440 Ohms	85 °C	-40 °C		12 VDC	1 A	1 ms	CSA TUV UL	Gold Alloy Silver Alloy	General Purpose	8.3 mA	220 W 250 VA	9 VDC	Latching Single Coil	Through Hole	220 VDC 250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay DPDT (2 Form C) Through Hole
