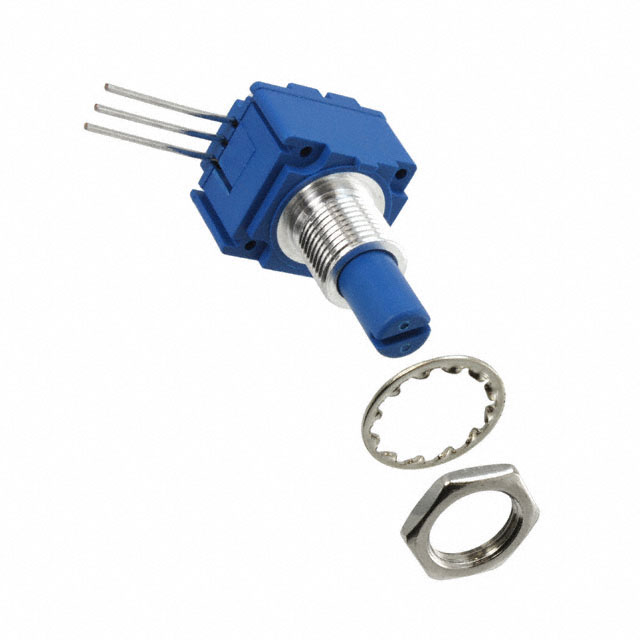

91U1A-T22-A15L
ActiveBourns Inc.
POT 10K OHM 2W CERMET LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
91U1A-T22-A15L
ActiveBourns Inc.
POT 10K OHM 2W CERMET LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 91U1A-T22-A15L |
|---|---|
| Actuator Diameter [diameter] | 0.157 in |
| Actuator Diameter [diameter] | 3.99 mm |
| Actuator Length [z] | 0.866 in |
| Actuator Length [z] | 22 mm |
| Actuator Type | Slotted |
| Adjustment Type | Side Adjustment |
| Built in Switch | False |
| Bushing Thread | 0.75 |
| Bushing Thread | M7 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 2 W |
| Resistance (Ohms) | 10k |
| Resistive Material | Cermet |
| Rotation | 300 ░ |
| Size - Body [x] | 0.687 in |
| Size - Body [x] | 17.45 mm |
| Size - Body [y] | 0.625 in |
| Size - Body [y] | 15.88 mm |
| Taper | Linear |
| Temperature Coefficient | 150 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.78 | |
| 10 | $ 6.54 | |||
| 100 | $ 5.48 | |||
| 500 | $ 4.84 | |||
| 1000 | $ 4.59 | |||
Description
General part information
91U1A Series
10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 2W PC Pins
