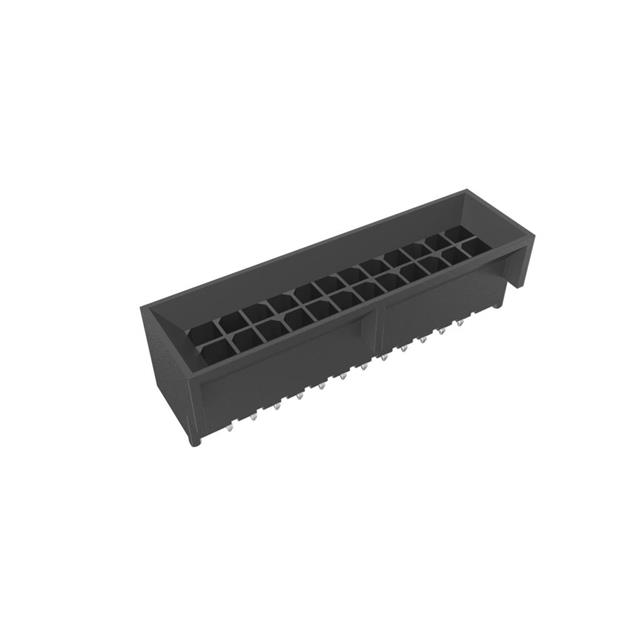

10138980-2411LF
ActiveAmphenol ICC (FCI)
3.0 PITCH PCB HEADER STR
Deep-Dive with AI
Search across all available documentation for this part.
10138980-2411LF
ActiveAmphenol ICC (FCI)
3.0 PITCH PCB HEADER STR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10138980-2411LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.13 in |
| Contact Length - Post | 3.3 mm |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 11.6 mm |
| Insulation Height | 0.457 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.118 in |
| Pitch - Mating | 3 mm |
| Row Spacing - Mating | 3 mm |
| Row Spacing - Mating | 0.118 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Kinked Pin, Solder |
| Voltage Rating | 600 VAC |
10138980 Series
| Part | Mounting Type | Style | Shrouding | Connector Type | Insulation Material | Termination | Contact Shape | Contact Material | Voltage Rating | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Row Spacing - Mating | Row Spacing - Mating | Number of Positions | Material Flammability Rating | Pitch - Mating | Pitch - Mating | Insulation Height | Insulation Height | Contact Type | Insulation Color | Current Rating (Amps) | Number of Rows | Features | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 V | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | 12 | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide Glow Wire Compliant | ||||||||
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 V | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | 14 | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide Glow Wire Compliant | Gold | 15 µin | 0.38 µm | |||||
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 V | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | 6 | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide Glow Wire Compliant | ||||||||
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 V | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide Glow Wire Compliant | 16 | ||||||||
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 V | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | 20 | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide Glow Wire Compliant | Gold | 15 µin | 0.38 µm | |||||
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 V | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | 10 | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide Glow Wire Compliant | Gold | 30 Áin | 0.76 Ám | |||||
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 V | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | 10 | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide Glow Wire Compliant | Gold | 15 µin | 0.38 µm | |||||
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 VAC | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | 6 | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide | -40 °C | 105 ░C | Push-Pull | Tin | ||||
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 V | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | 20 | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide Glow Wire Compliant | ||||||||
Amphenol ICC (FCI) | Through Hole | Board to Cable/Wire | Shrouded - 4 Wall | Header | Liquid Crystal Polymer (LCP) | Kinked Pin Solder | Square | Copper Alloy | 600 VAC | All | 0.13 in | 3.3 mm | 3 mm | 0.118 in | 24 | UL94 V-0 | 0.118 in | 3 mm | 11.6 mm | 0.457 in | Male Pin | Black | Varies by Wire Gauge | 2 | Board Guide | -40 °C | 105 ░C | Push-Pull | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1600 | $ 1.84 | |
Description
General part information
10138980 Series
Connector Header Through Hole 24 position 0.118" (3.00mm)
