3182-3SG-3DC

Active

Conxall/Switchcraft

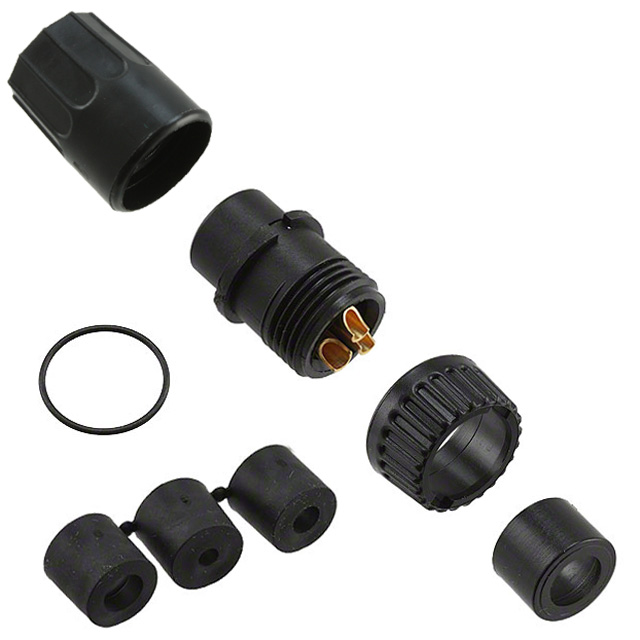

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3182-3SG-3DC

Active

Conxall/Switchcraft

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.42
		10	$ 14.23
		25	$ 13.49
		50	$ 13.29
		100	$ 11.73
		250	$ 10.94
		500	$ 10.71

Description

General part information

3182-3S Series

3 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3182-3SG-3DC	3182-3S Series

	-	-
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.84 - 7.37 mm
Cable Opening	-	5.33 - 7.62 mm
Cable Opening	-	0.23 - 0.32 in
Cable Opening	-	0.21 - 0.3 in
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening	-	8.13 mm
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

3182-3S Series

CONN PLUG FMALE 3P GOLD SLDR CUP

Part	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Mounting Type	Contact Finish - Mating	Contact Material	Shielding	Color	Primary Material	Orientation	Voltage Rating	Features	Backshell Material, Plating	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Fastening Type	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 3182-3SG-328	7.37 mm	7.11 mm	0.29 in	0.28 in	Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets, Plug	Bayonet Lock
Conxall/Switchcraft 3182-3SG-521	5.84 mm	5.33 mm	0.23 in	0.21 in	Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets, Plug	Bayonet Lock
Conxall/Switchcraft 3182-3SG-518					Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets, Plug	Bayonet Lock	4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3182-3SG-524	6.86 mm	6.1 mm	0.27 in	0.24 in	Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets, Plug	Bayonet Lock
Conxall/Switchcraft 3182-3SG-515					Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell, Cable Clamp	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets, Plug	Bayonet Lock					0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3182-3SG-330		7.62 mm	0.32 in	0.3 in	Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets, Plug	Bayonet Lock							8.13 mm
Conxall/Switchcraft 3182-3SG-3XX
Conxall/Switchcraft 3182-3SG-3DC					Free Hanging (In-Line)	Gold	Brass	Unshielded	Black	Plastic	Keyed	600 V	Backshell	Nylon, Polyamide (PA)	Weathertight	-40 °C	115 °C	Female Sockets, Plug	Bayonet Lock
