MRSSV0DR10THT

Active

TE Connectivity Raychem Cable Protection

MRSSV 2.54 GRA SD REA 10 T-H POST TUB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MRSS - MINIATURE ROTARY SWITCH SERIES +2

MRSSV0DR10THT

Active

TE Connectivity Raychem Cable Protection

MRSSV 2.54 GRA SD REA 10 T-H POST TUB

Deep-Dive with AI

DocumentsDatasheet MRSS - MINIATURE ROTARY SWITCH SERIES +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MRSSV0DR10THT

Actuator Level	Flush, Recessed
Actuator Type	Rotary for Tool
Body Material	Polyphenylene Sulfide (PPS)
Circuit	BCD
Contact Finish	Gold
Contact Material	Copper Alloy
Electrical Life	10000 Cycles
Height Above Board	0.13 in
Height Above Board	3.3 mm
Length [x]	7.2 mm
Length [x]	0.283 "
Mechanical Life	10000 Steps
Mounting Type	Through Hole
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch	Full
Pitch [x]	0.1 in
Pitch [x]	2.54 mm
Termination Style	PC Pin
Voltage Rating	20 VAC/DC
Washable	False

ALCOSWITCH MRSS Series

Part	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Pitch [x]	Pitch	Pitch [x]	Termination Style	Contact Finish	Actuator Type	Body Material	Circuit	Voltage Rating	Mechanical Life	Mounting Type	Length [x]	Length [x]	Number of Positions	Height Above Board	Height Above Board	Actuator Level	Number of Positions	Length	Height Above Board [z]	Height Above Board [z]
TE Connectivity Raychem Cable Protection MRSSV1DC16SMGWT	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.1 in	Full	2.54 mm	Gull Wing	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)	Hexadecimal Complement	20 VAC/DC	10000 Steps	Surface Mount	7.2 mm	0.283 "	16	3.1 mm	0.122 in	Flush Recessed
TE Connectivity Raychem Cable Protection MRSSV1DR16SMJT	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.1 in	Full	2.54 mm	J Lead	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)	Hexadecimal	20 VAC/DC	10000 Steps	Surface Mount	7.2 mm	0.283 "	16	3.02 mm	0.119 in	Flush Recessed
TE Connectivity Raychem Cable Protection MRSSH4DR10THT	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.05 in		1.27 mm	PC Pin	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)	BCD	20 VAC/DC	10000 Steps	Through Hole Right Angle		0.303 in				Flush Recessed	10	7.7 mm	0.303 in	7.7 mm
TE Connectivity Raychem Cable Protection MRSSV0DR16SMGWTR	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.1 in	Full	2.54 mm	Gull Wing	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)	Hexadecimal	20 VAC/DC	10000 Steps	Surface Mount	7.2 mm	0.283 "	16	3.1 mm	0.122 in	Flush Recessed
TE Connectivity Raychem Cable Protection MRSSV0DC10SMGWT	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.1 in	Full	2.54 mm	Gull Wing	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)	BCD Complement	20 VAC/DC	10000 Steps	Surface Mount	7.2 mm	0.283 "		3.1 mm	0.122 in	Flush Recessed	10
TE Connectivity Raychem Cable Protection MRSSV0DR10THT	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.1 in	Full	2.54 mm	PC Pin	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)	BCD	20 VAC/DC	10000 Steps	Through Hole	7.2 mm	0.283 "		3.3 mm	0.13 in	Flush Recessed	10
TE Connectivity Raychem Cable Protection MRSSV0DC16THT	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.1 in	Full	2.54 mm	PC Pin	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)	Hexadecimal Complement	20 VAC/DC	10000 Steps	Through Hole	7.2 mm	0.283 "	16	3.3 mm	0.13 in	Flush Recessed
TE Connectivity Raychem Cable Protection MRSSH4DC16SMGWT	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.05 in		1.27 mm	Gull Wing	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)	Hexadecimal Complement	20 VAC/DC	10000 Steps	Surface Mount Right Angle		0.303 in	16			Flush Recessed		7.7 mm	0.303 in	7.7 mm
TE Connectivity Raychem Cable Protection MRSSV0DC16SMJT	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.1 in	Full	2.54 mm	J Lead	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)	Hexadecimal Complement	20 VAC/DC	10000 Steps	Surface Mount	7.2 mm	0.283 "	16	3.02 mm	0.119 in	Flush Recessed
TE Connectivity Raychem Cable Protection MRSSH4DG16SMGWT	Copper Alloy	85 °C	-40 °C	10000 Cycles	0.05 in		1.27 mm	Gull Wing	Gold	Rotary for Tool	Polyphenylene Sulfide (PPS)		20 VAC/DC	10000 Steps	Surface Mount Right Angle		0.303 in	16			Flush Recessed		7.7 mm	0.303 in	7.7 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 5.74
		5	$ 4.93
		10	$ 4.62
		25	$ 4.23
		60	$ 3.90
		120	$ 3.65
		300	$ 3.35
LCSC	Piece	1	$ 3.26
		180	$ 1.30
		480	$ 1.26

Description

General part information

ALCOSWITCH MRSS Series

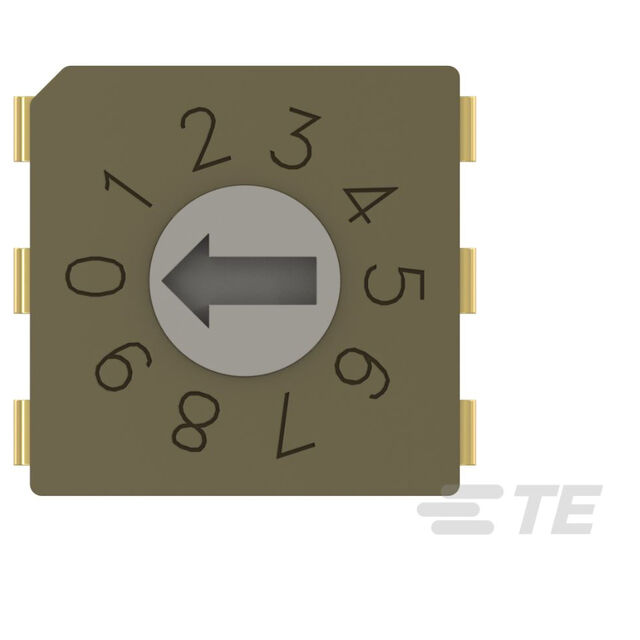

10 Position, Screwdriver Slot Actuator, White Actuator, Rotary DIP, 10 Switch, Thermoplastic, Sealed, ALCOSWITCH MRSS, Rotary Switches

Documents

Technical documentation and resources

Datasheet

MRSSV0DR10THT

Deep-Dive with AI

MRSSV0DR10THT

Deep-Dive with AI

Technical Specifications

ALCOSWITCH MRSS Series

Pricing

Description

ALCOSWITCH MRSS Series

Documents

Datasheet

MRSS - MINIATURE ROTARY SWITCH SERIES

Miniature rotary switches series

Datasheet

ALCOSWITCH MRSS Series
