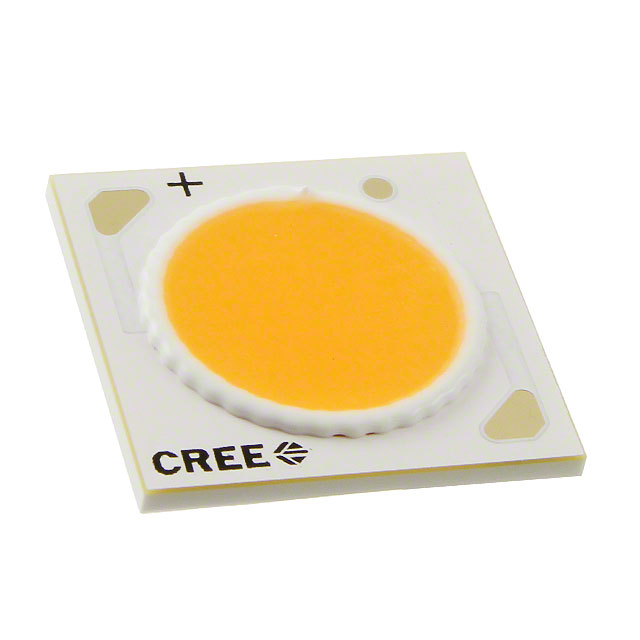

CXA1820-0000-000N0YM430H

Active

Cree LED

XLAMP CXA LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CXA1820-0000-000N0YM430H

Active

Cree LED

XLAMP CXA LIGHT EMITTING DIODE WHITE ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CXA1820-0000-000N0YM430H

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	93
Current - Max [Max]	1.05 A
Current - Test	550 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	12 mm
Lumens/Watt @ Current - Test	76 lm/W
Luminous Flux @ Current/Temperature	1538 lm
Size / Dimension [x]	17.85 mm
Size / Dimension [y]	17.85 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	37 V

CXA1820 Series

...

Part	Height [z]	Lumens/Watt @ Current - Test	Configuration	Light Emitting Surface (LES) [diameter]	Viewing Angle	Color	Current - Test	Current - Max [Max]	Type	Size / Dimension [y]	Size / Dimension [x]	Lens Type	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Temperature - Test	CRI (Color Rendering Index)	CCT (K)	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature [Max]	CCT (K)
Cree LED CXA1820-0000-000N0UQ250G	1.7 mm	110 lm/W	Square	12 mm	115 °	Cool White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	36 V	2180 lm	85 °C	90
Cree LED CXA1820-0000-000N0UP440G	1.7 mm	103 lm/W	Square	12 mm	115 °	Neutral White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	36 V	2033 lm	85 °C	90	4000 K
Cree LED CXA1820-0000-000N00Q227G	1.7 mm	110 lm/W	Square	12 mm	115 °	Warm White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	36 V	2180 lm	85 °C	80	2700 K
Cree LED CXA1820-0000-000N0HQ40E5	1.7 mm	115 lm/W	Square	12 mm	115 °	Neutral White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	37 V	2340 lm	85 °C	80	4000 K	2260 lm	2780 lm
Cree LED CXA1820-0000-000N00P427F	1.7 mm	100 lm/W	Square	12 mm	115 °	Warm White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	37 V	2033 lm	85 °C	80	2700 K			4-Step MacAdam Ellipse
Cree LED CXA1820-0000-000N0UP240G	1.7 mm	96 lm/W	Square	12 mm	115 °	Neutral White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	36 V	1898 lm	85 °C	90	4000 K	1830 lm	1965 lm
Cree LED CXA1820-0000-000N00Q227F	1.7 mm	107 lm/W	Square	12 mm	115 °	Warm White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	37 V	2180 lm	85 °C	80	2700 K			4-Step MacAdam Ellipse
Cree LED CXA1820-0000-000N0YN227F	1.7 mm	81 lm/W	Square	12 mm	115 °	Warm White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	37 V	1650 lm	85 °C	93	2700 K	1590 lm	1710 lm	4-Step MacAdam Ellipse
Cree LED CXA1820-0000-000N0YM430H	1.7 mm	76 lm/W	Square	12 mm	115 °	Warm White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	37 V	1538 lm	85 °C	93	3000 K
Cree LED CXA1820-0000-000N0YN235H	1.7 mm	81 lm/W	Square	12 mm	115 °	Warm White	550 mA	1.05 A	Chip On Board (COB)	17.85 mm	17.85 mm	Flat	37 V	1650 lm	85 °C	93	3500 K	1590 lm	1710 lm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 5.61
Newark	Each	100	$ 5.55
		250	$ 4.62
		500	$ 4.49

Description

General part information

CXA1820 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CXA1820 White, Warm Square
