TDS04SGNNTU04
ActiveTE Connectivity Raychem Cable Protection

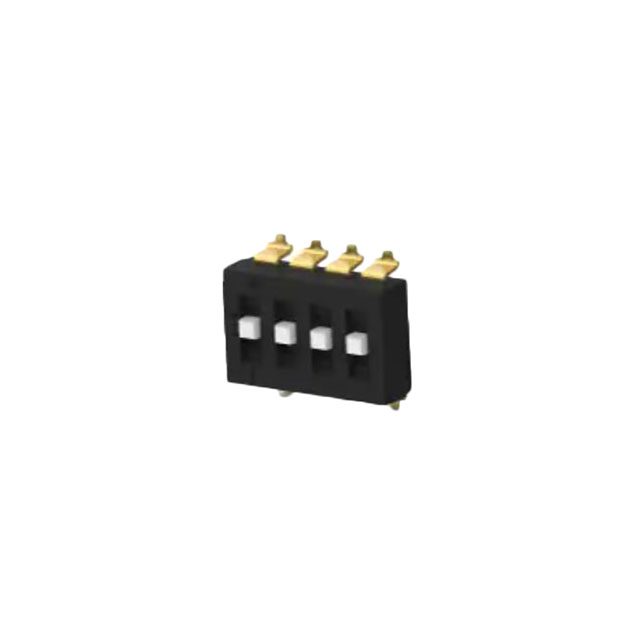

TRI-STATE DIP 4P G RAISED TUBE
Deep-Dive with AI
Search across all available documentation for this part.
TDS04SGNNTU04
ActiveTE Connectivity Raychem Cable Protection
TRI-STATE DIP 4P G RAISED TUBE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TDS04SGNNTU04 |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Body Material | Nylon, Polyamide (PA) |
| Circuit | SPST |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 25 mA |
| Electrical Life | 2000 Steps |
| Height Above Board | 0.161 " |
| Height Above Board | 4.1 mm |
| Length | 11.33 mm |
| Length [x] | 0.446 in |
| Mechanical Life | 2000 Cycles |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 24 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.89 | |
| 10 | $ 2.78 | |||
| 41 | $ 2.55 | |||
| 82 | $ 2.43 | |||
| 123 | $ 2.32 | |||
| 287 | $ 2.03 | |||
| 533 | $ 1.97 | |||
| 1025 | $ 1.68 | |||
| 5002 | $ 1.51 | |||
Description
General part information
ALCOSWITCH DIP TDS Series
DIP Switch, Gold Contact Plating, Black, High Temperature Nylon, 4 Switch, -20 – 85 °C, Slide Actuator, .025 A Contact Rating, ALCOSWITCH DIP TDS
