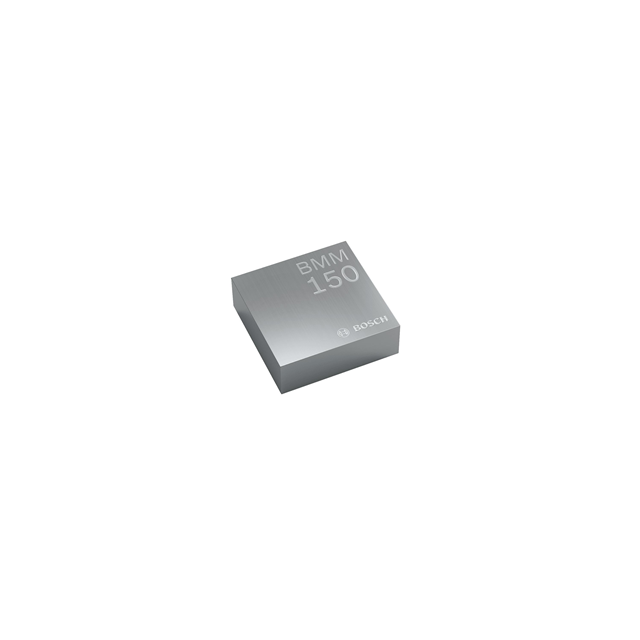

BMM150

Obsolete

Bosch Sensortec

SENSOR FLIPCORE/HALL SPI 12WLCSP

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SENSOR FLIPCORE/HALL SPI 12WLCSP

Technical Specifications

Parameters and characteristics commom to parts in this series

SENSOR FLIPCORE/HALL SPI 12WLCSP

Part	Package / Case	Axis [z]	Axis [y]	Axis [x]	Mounting Type	Resolution	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Technology	Supplier Device Package	Sensing Range	Output Type	Bandwidth	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Type	Contents	Function
Bosch Sensortec BMM150	12-UFBGA, WLCSP	Z	Y	X	Surface Mount	13 b	85 °C	-40 °C	20 mA	FlipCore, Hall Effect	12-WLCSP (1.56x1.56)	1.3 mT, 2.5 mT	I2C, SPI	10 Hz	3.6 V	1.62 V
Bosch Sensortec BMM150-SHUTL																	BMM150	Sensor	Board(s)	Magnetometer

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

FlipCore, Hall Effect Sensor X, Y, Z Axis 12-WLCSP (1.56x1.56)
