BMM150-SHUTL

Obsolete

Bosch Sensortec

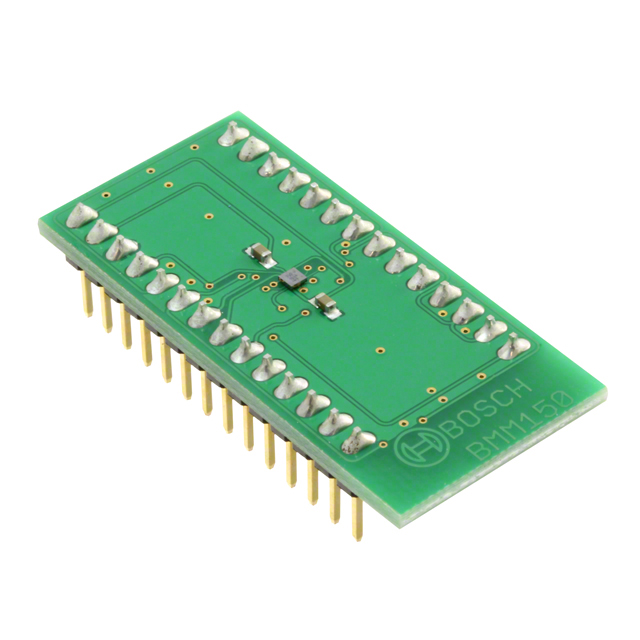

SHUTTLE BOARD BMM150

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMM150

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMM150 Magnetometer Sensor Platform Evaluation Expansion Board

Technical documentation and resources

Part	Package / Case	Axis [z]	Axis [y]	Axis [x]	Mounting Type	Resolution	Operating Temperature [Max]	Operating Temperature [Min]	Current - Supply (Max) [Max]	Technology	Supplier Device Package	Sensing Range	Output Type	Bandwidth	Voltage - Supply [Max]	Voltage - Supply [Min]	Utilized IC / Part	Type	Contents	Function
Bosch Sensortec BMM150	12-UFBGA, WLCSP	Z	Y	X	Surface Mount	13 b	85 °C	-40 °C	20 mA	FlipCore, Hall Effect	12-WLCSP (1.56x1.56)	1.3 mT, 2.5 mT	I2C, SPI	10 Hz	3.6 V	1.62 V
Bosch Sensortec BMM150-SHUTL																	BMM150	Sensor	Board(s)	Magnetometer
