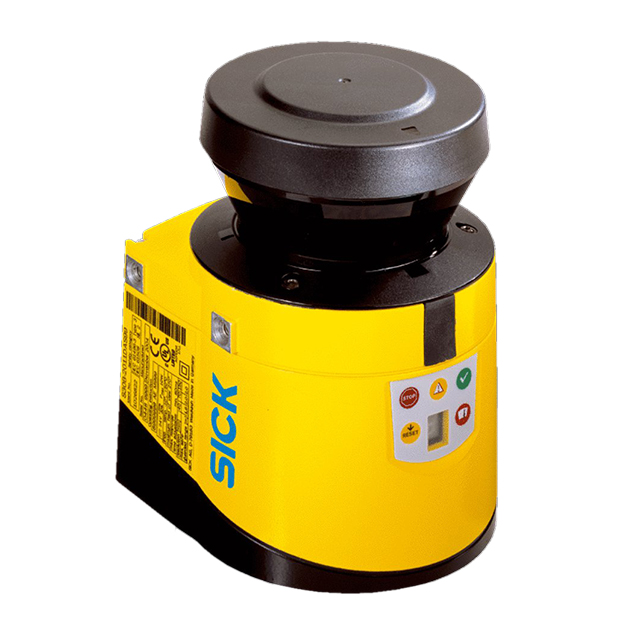

Specification	1056427

Approval Agency	cULus, CE
Auxiliary Outputs	3
Detection Capability	70mm, 40mm, 30mm, 50mm, 150mm
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Number of Monitor Fields	3
Number of Outputs	5
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-10 °C
Output Type	Auxiliary, Safety
Protection Range	3 m
Response Time	80 ms
Safety Category	SIL2, Category 3, PLd
Safety Outputs	2
Sensing Angle	270 °
Warning Range	8 m

S30B Series

Part	Approval Agency	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Min)	Operating Temperature (Max)	Sensing Angle	Output Type	Safety Outputs	Number of Outputs	Auxiliary Outputs	Response Time	Detection Capability	Number of Monitor Fields	Safety Category	Protection Range	Warning Range
SICK, Inc. 1026822	CE cULus	IP65	Dust Tight Water Resistant	-10 °C	50 °C	270 °	Auxiliary Safety	2	5	3	80 ms	30mm 40mm 50mm 70mm	24	Category 3 PLd SIL2	2 m	8 m
SICK, Inc. 1057641	CE cULus	IP65	Dust Tight Water Resistant	-10 °C	50 °C	270 °	Auxiliary Safety	2	5	3	80 ms	150mm 30mm 40mm 50mm 70mm	48	Category 3 PLd SIL2	3 m	8 m
SICK, Inc. 1026820	CE cULus	IP65	Dust Tight Water Resistant	-10 °C	50 °C	270 °	Auxiliary Safety	2	5	3	80 ms	30mm 40mm 50mm 70mm	3	Category 3 PLd SIL2	2 m	8 m
SICK, Inc. 1056428	CE cULus	IP65	Dust Tight Water Resistant	-10 °C	50 °C	270 °	Auxiliary Safety	2	5	3	80 ms	150mm 30mm 40mm 50mm 70mm	12	Category 3 PLd SIL2	3 m	8 m
SICK, Inc. 1056427	CE cULus	IP65	Dust Tight Water Resistant	-10 °C	50 °C	270 °	Auxiliary Safety	2	5	3	80 ms	150mm 30mm 40mm 50mm 70mm	3	Category 3 PLd SIL2	3 m	8 m
SICK, Inc. 1050193	CE cULus	IP65	Dust Tight Water Resistant	-10 °C	50 °C	270 °	Auxiliary Safety	2	5	3	80 ms	30mm 40mm 50mm 70mm	48	Category 3 PLd SIL2	2 m	8 m
