967116-2
ActiveTE Connectivity AMP Connectors

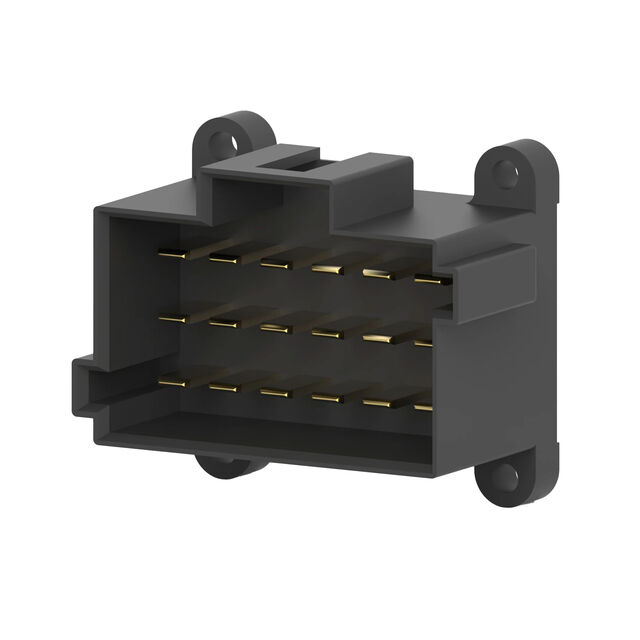

CONN HEADER VERT 18POS 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
967116-2
ActiveTE Connectivity AMP Connectors
CONN HEADER VERT 18POS 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 967116-2 | 967116 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Silver | Silver |
| Contact Finish - Post | Tin | Tin |
| Contact Length - Post | 3.5 mm | 3.5 mm |
| Contact Length - Post | 0.138 in | 0.138 in |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Shape | Rectangular | Rectangular |
| Contact Type | Tab | Tab |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Board Guide, Mounting Flange | Board Guide, Mounting Flange |
| Insulation Color | Black | Black |
| Insulation Height | 20.7 mm | 20.7 mm |
| Insulation Height | 0.815 in | 0.815 in |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 18 | 18 |
| Number of Positions Loaded | All | All |
| Number of Rows | 3 | 3 |
| Pitch - Mating | 5 mm | 5 mm |
| Pitch - Mating | 0.197 " | 0.197 " |
| Row Spacing - Mating | 0.217 in | 0.217 in |
| Row Spacing - Mating | 5.51 mm | 5.51 mm |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Style | Board to Cable/Wire | Board to Cable/Wire |
| Termination | Solder | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.15 | |
| 10 | $ 5.39 | |||
| 450 | $ 4.80 | |||
| 1350 | $ 4.01 | |||
967116 Series
CONN HEADER VERT 18POS 5MM
| Part | Termination | Number of Positions | Insulation Color | Contact Finish - Post | Style | Shrouding | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Number of Positions Loaded | Fastening Type | Contact Shape | Contact Finish - Mating | Contact Length - Post | Contact Length - Post | Number of Rows | Connector Type | Mounting Type | Insulation Height | Insulation Height | Features | Pitch - Mating | Pitch - Mating | Contact Type | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 967116-2 | Solder | 18 | Black | Tin | Board to Cable/Wire | Shrouded - 4 Wall | 0.217 in | 5.51 mm | Phosphor Bronze | All | Push-Pull | Rectangular | Silver | 3.5 mm | 0.138 in | 3 | Header | Through Hole | 20.7 mm | 0.815 in | Board Guide, Mounting Flange | 5 mm | 0.197 " | Tab | Polyamide (PA66), Nylon 6/6, Glass Filled |
TE Connectivity AMP Connectors 967116-1 | Solder | 18 | Black | Tin | Board to Cable/Wire | Shrouded - 4 Wall | 0.217 in | 5.51 mm | Phosphor Bronze | All | Push-Pull | Rectangular | Silver | 3.5 mm | 0.138 in | 3 | Header | Through Hole | 20.7 mm | 0.815 in | Board Guide, Mounting Flange | 5 mm | 0.197 " | Tab | Polyamide (PA66), Nylon 6/6, Glass Filled |
Description
General part information
967116 Series
Connector Header Through Hole 18 position 0.197" (5.00mm)
Documents
Technical documentation and resources
