3922-0-01-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Search across all available documentation for this part.
3922-0-01-34-00-00-08-0
ActiveMill-Max Manufacturing Corp.
CONN PC PIN CIRC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3922-0-01-34-00-00-08-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 50 µin |
| Contact Finish Thickness | 1.27 µm |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 0.061 in |
| Flange Diameter [diameter] | 1.55 mm |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 6.78 mm |
| Length - Above Flange [x] | 0.267 in |
| Length - Below Flange [x] | 0.234 in |
| Length - Below Flange [x] | 5.94 mm |
| Length - Overall [x] | 0.532 in |
| Length - Overall [x] | 13.51 mm |
| Mounting Type | Free Hanging (In-Line) |
| Pin Size - Above Flange [diameter] | 0.76 mm |
| Pin Size - Above Flange [diameter] | 0.03 in |
| Pin Size - Below Flange [diameter] | 0.047 in |
| Pin Size - Below Flange [diameter] | 1.19 mm |
| Terminal Style | Wire |
| Terminal Type | PC Pin |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.60 | |
| 10 | $ 1.40 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.31 | |||
| 100 | $ 1.25 | |||
| 250 | $ 1.13 | |||
| 500 | $ 1.04 | |||
| 1000 | $ 0.89 | |||
| 3000 | $ 0.83 | |||
Description
General part information
3922-0 Series

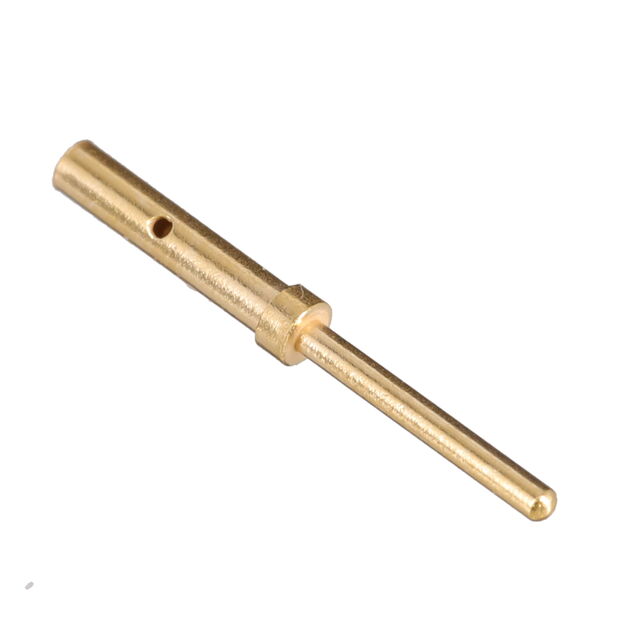

PC Pin Terminal Connector Free Hanging (In-Line) Gold 0.030" (0.76mm) Dia
