11072F-03-2-1-1

Active

CnC Tech, LLC

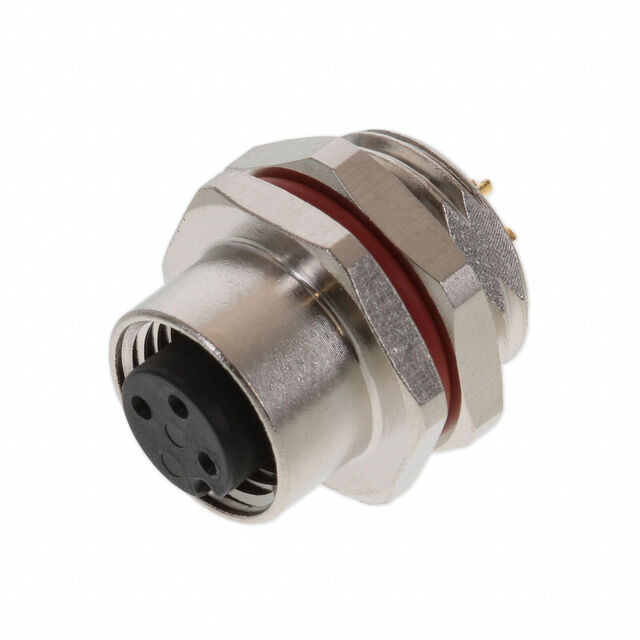

CONN PLUG FMALE 3POS SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

11072F-03-2-1-1

Active

CnC Tech, LLC

CONN PLUG FMALE 3POS SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	11072F-03-2-1-1

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	M12-3
Shielding	Unshielded
Voltage Rating	60 VAC

11072F Series

Part	Primary Material	Color	Orientation	Shielding	Shell Size - Insert	Material Flammability Rating	Voltage Rating	Shell Finish	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Connector Type	Insert Material	Contact Finish - Mating	Contact Material	Shell Material	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Mounting Feature	Ingress Protection
CnC Tech, LLC 11072F-04-2-1-4	Metal	Silver	D	Unshielded	M12-4	UL94 V-0	60 VAC	Nickel	3 µin	0.076 µm	4	Female Sockets Plug	Nylon Polyamide (PA)	Gold	Copper Alloy	Copper Alloy	100 °C	-40 °C	5 A	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof
CnC Tech, LLC 11072F-04-2-1-1	Metal	Silver	A	Unshielded	M12-4	UL94 V-0	60 VAC	Nickel	3 µin	0.076 µm	4	Female Sockets Plug	Nylon Polyamide (PA)	Gold	Copper Alloy	Copper Alloy	100 °C	-40 °C	5 A	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof
CnC Tech, LLC 11072F-03-2-1-4	Metal	Silver	D	Unshielded	M12-3	UL94 V-0	60 VAC	Nickel	3 µin	0.076 µm		Female Sockets Plug	Nylon Polyamide (PA)	Gold	Copper Alloy	Copper Alloy	100 °C	-40 °C	5 A	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof
CnC Tech, LLC 11072F-08-2-1-1	Metal	Silver	A	Unshielded	M12-8	UL94 V-0	60 VAC	Nickel	3 µin	0.076 µm	8	Female Sockets Plug	Nylon Polyamide (PA)	Gold	Copper Alloy	Copper Alloy	100 °C	-40 °C	5 A	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof
CnC Tech, LLC 11072F-12-2-1-1	Metal	Silver	A	Unshielded	M12-12	UL94 V-0	60 VAC	Nickel	3 µin	0.076 µm	12	Female Sockets Plug	Nylon Polyamide (PA)	Gold	Copper Alloy	Copper Alloy	100 °C	-40 °C	5 A	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof
CnC Tech, LLC 11072F-03-2-1-1	Metal	Silver	A	Unshielded	M12-3	UL94 V-0	60 VAC	Nickel	3 µin	0.076 µm		Female Sockets Plug	Nylon Polyamide (PA)	Gold	Copper Alloy	Copper Alloy	100 °C	-40 °C	5 A	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof
CnC Tech, LLC 11072F-05-2-1-1	Metal	Silver	A	Unshielded	M12-5	UL94 V-0	60 VAC	Nickel	3 µin	0.076 µm		Female Sockets Plug	Nylon Polyamide (PA)	Gold	Copper Alloy	Copper Alloy	100 °C	-40 °C	5 A	Bulkhead - Rear Side Nut	IP68 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 8.68
		10	$ 7.70
		25	$ 7.40
		40	$ 7.11
		80	$ 6.95

Description

General part information

11072F Series

3 Position Circular Connector Plug, Female Sockets Solder Cup
