ST24KD00

Active

E-Switch

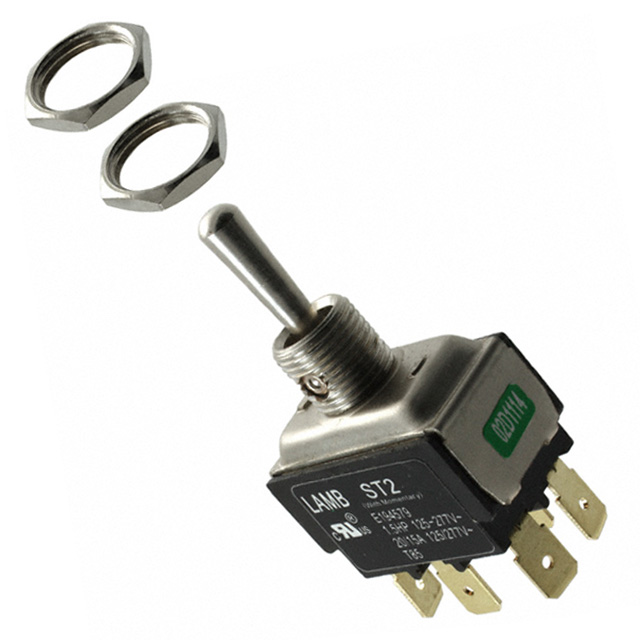

SWITCH: TOGGLE; POS: 3; DP3T; (ON)-OFF-(ON); 20A/125VAC; 0÷85°C

Search across all available documentation for this part.

Active

E-Switch

SWITCH: TOGGLE; POS: 3; DP3T; (ON)-OFF-(ON); 20A/125VAC; 0÷85°C

Technical Specifications

Parameters and characteristics for this part

Specification	ST24KD00

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

Part	Voltage Rating - AC	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Termination Style	Circuit	Actuator Material	Illumination	Actuator Type	Current Rating (Amps)	Switch Function	Bushing Thread	Bushing Thread
E-Switch ST24KD00	125 V	12 mm	17.5 mm	0 °C	85 °C	6000 Cycles	Quick Connect - 0.250" (6.3mm)	DPDT	Brass Nickel Plated	Non-Illuminated	Standard Round	20 A	Mom-Off-Mom	M12	1 x 1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Panel Mount
