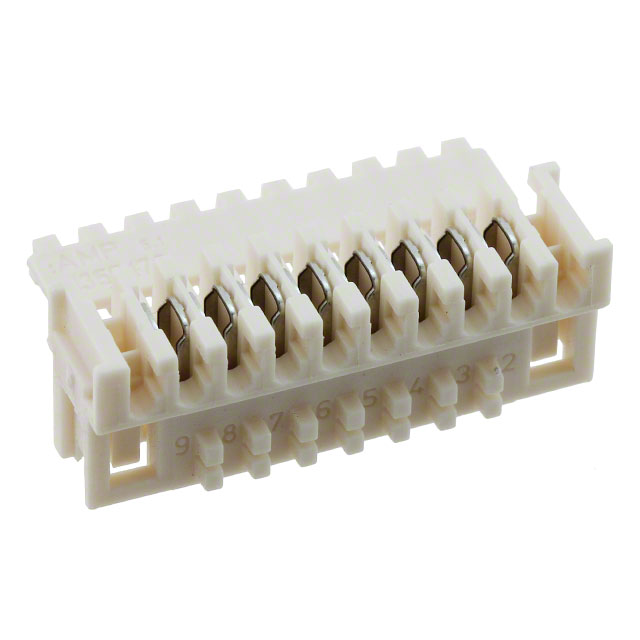

2-1355181-8

Active

TE Connectivity AMP Connectors

CONN RCPT 8POS IDC 22AWG TIN

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT 8POS IDC 22AWG TIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	13440	$ 0.35

General part information

8 Position Rectangular Receptacle Connector IDC Tin 22 AWG

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2-1355181-8	1355181 Series

Cable Termination	IDC	IDC
Color	Natural	Natural
Connector Type	Receptacle	Receptacle
Contact Finish	Tin	Tin
Contact Type	Female Socket	Female Socket
Features	Mates to PCB	Mates to PCB
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Number of Positions	8	2 - 8
Number of Rows	1	1
Pitch [x]	0.098 in	0.098 in
Pitch [x]	2.5 mm	2.5 mm
Wire Gauge	22 AWG	22 AWG
Wire Type	Discrete	Discrete

CONN RCPT 7POS IDC 22AWG TIN

Part	Color	Features	Contact Finish	Wire Type	Wire Gauge	Pitch [x]	Pitch [x]	Contact Type	Cable Termination	Number of Rows	Connector Type	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 1-1355181-7	Natural	Mates to PCB	Tin	Discrete	22 AWG	0.098 in	2.5 mm	Female Socket	IDC	1	Receptacle	Free Hanging (In-Line), Right Angle	7
TE Connectivity AMP Connectors 1-1355181-6	Natural	Mates to PCB	Tin	Discrete	22 AWG	0.098 in	2.5 mm	Female Socket	IDC	1	Receptacle	Free Hanging (In-Line), Right Angle	6
TE Connectivity AMP Connectors 2-1355181-8	Natural	Mates to PCB	Tin	Discrete	22 AWG	0.098 in	2.5 mm	Female Socket	IDC	1	Receptacle	Free Hanging (In-Line), Right Angle	8
TE Connectivity AMP Connectors 2-1355181-6	Natural	Mates to PCB	Tin	Discrete	22 AWG	0.098 in	2.5 mm	Female Socket	IDC	1	Receptacle	Free Hanging (In-Line), Right Angle	8
TE Connectivity AMP Connectors 1-1355181-2	Natural	Mates to PCB	Tin	Discrete	22 AWG	0.098 in	2.5 mm	Female Socket	IDC	1	Receptacle	Free Hanging (In-Line), Right Angle	2
TE Connectivity AMP Connectors 1-1355181-8	Natural	Mates to PCB	Tin	Discrete	22 AWG	0.098 in	2.5 mm	Female Socket	IDC	1	Receptacle	Free Hanging (In-Line), Right Angle	8
