Description
General part information

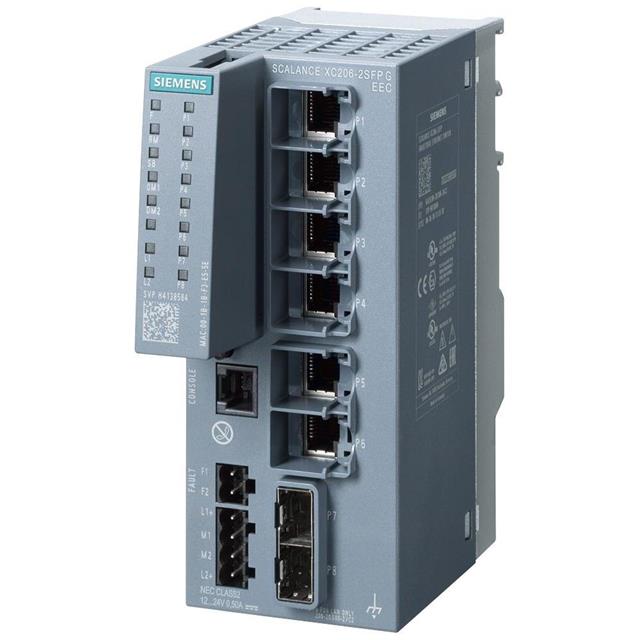

6GK52062 Series
Network Switch - Managed 8 Ports IP20
Technical Specifications
Parameters and characteristics for this part
| Specification | 6GK52062GS002FC2 |
|---|---|
| Configuration | Fixed, SFP |
| Connector Type | SFP, RJ11, RJ45 |
| Copper Ports | 6 |
| Copper Type (Maximum) | 1000 |
| Copper Type (Minimum) | 10 |
| Copper Type (Typical) | 100 |
| Fiber Ports | 2 |
| Fiber Type | SFP |
| Ingress Protection | IP20 |
| Mounting Type | Wall Mount, DIN Rail |
| Number of Ports | 8 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| SFP/XFP Ports (Count) | 2 |
| SFP/XFP Type | SFP |
| Type | Switch - Managed |
| Voltage - Input (Maximum) | 31.2 V |
| Voltage - Input (Minimum) | 9.6 V |
