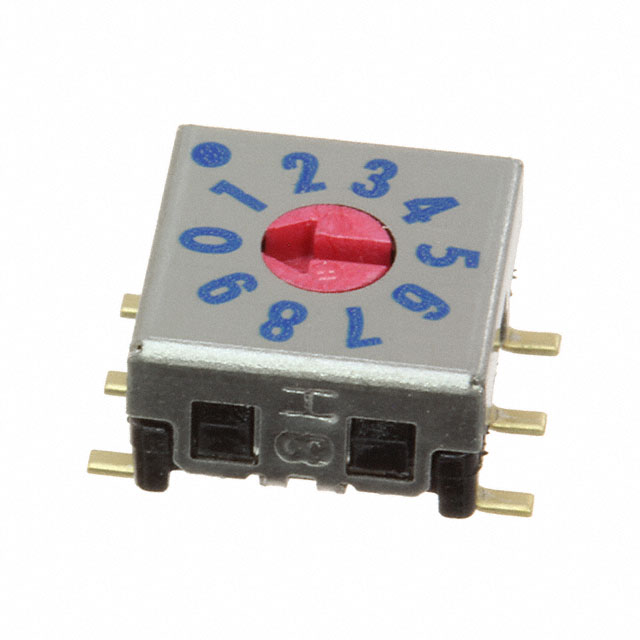

SMR7110C-1
ActiveNidec Components Corporation
SW ROTARY DIP BCD COMP 0.03A 15V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMR7110C-1
ActiveNidec Components Corporation
SW ROTARY DIP BCD COMP 0.03A 15V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMR7110C-1 |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | BCD Complement |
| Contact Finish | Gold |
| Current Rating (Amps) | 30 mA |
| Electrical Life | 10000 Cycles |
| Height Above Board | 4.4 mm |
| Height Above Board | 0.173 in |
| Length [x] | 7.5 mm |
| Length [x] | 0.295 in |
| Mechanical Life | 10000 Steps |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | Gull Wing |
| Voltage Rating | 15 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 50 | $ 3.78 | |
Description
General part information
SMR7110C Series
Dip Switch BCD Complement 10 Position Surface Mount Rotary for Tool Actuator 30mA 15VDC
