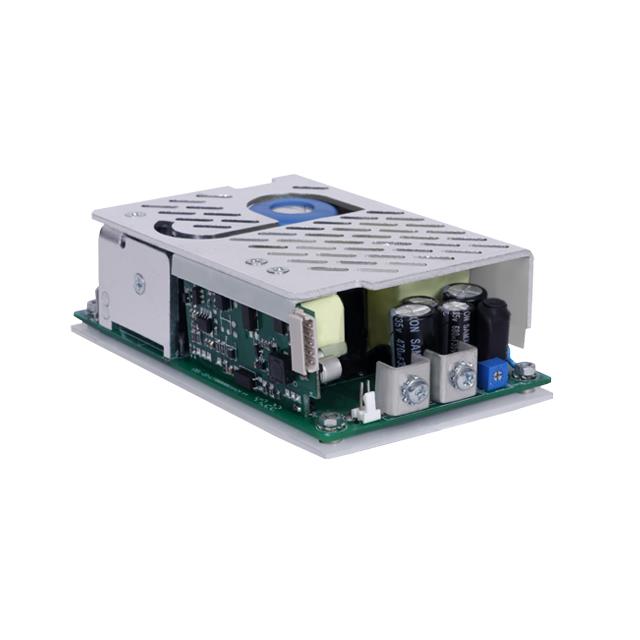

EPG500-1048

Active

Bel Power Solutions

SWITCHING POWER SUPPLIES POWERSUPPLY,EPG500-1048

Search across all available documentation for this part.

Active

Bel Power Solutions

SWITCHING POWER SUPPLIES POWERSUPPLY,EPG500-1048

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Switching Power Supplies POWERSUPPLY,EPG500-1048

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	EPG500-1048	EPG500 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	10.41 A	10.41 - 33.33 A
Efficiency	94 %	94 %
Features	I2C Interface, Remote On/Off, Adjustable Output, Remote Sense, PFC, Universal Input	Universal Input, Remote On/Off, Remote Sense, Adjustable Output, I2C Interface, PFC, Standby Output
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	500 W	400 - 500 W
Power (Watts)	300 W	240 - 300 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	1.58 "	1.58 "
Size / Dimension [z]	40 mm	40 mm
Standard Number	62368-1	62368-1
Type	Open Frame	Open Frame, Enclosed
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	48 V	12 - 48 V

Switching Power Supplies POWERSUPPLY,EPG500-1048

Part	Mounting Type	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Isolation	Applications	Features	Power (Watts)	Power (Watts)	Voltage - Output 1	Type	Standard Number	Efficiency
Bel Power Solutions EPG500-2212-L	Chassis Mount	33.33 A	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	1	CE	90 VAC	264 VAC	4000 V	ITE (Commercial)	Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	400 W	240 W	12 V	Open Frame	62368-1	94 %
Bel Power Solutions EPG500-2230-CK	Chassis Mount	16.67 A	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	1	CE	90 VAC	264 VAC	4000 V	ITE (Commercial)	Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	500 W	300 W	30 V	Enclosed	62368-1	94 %
Bel Power Solutions EPG500-1048	Chassis Mount	10.41 A	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	1	CE	90 VAC	264 VAC	4000 V	ITE (Commercial)	Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input	500 W	300 W	48 V	Open Frame	62368-1	94 %
Bel Power Solutions EPG500-1248-CKF	Chassis Mount	10.41 A	5 in	3 "	127 mm	1.58 "	76.2 mm	40 mm	1	CE	90 VAC	264 VAC	4000 V	ITE (Commercial)	Adjustable Output, I2C Interface, PFC, Remote On/Off, Remote Sense, Universal Input	500 W	300 W	48 V	Enclosed	62368-1	94 %
