GSC.1S.290.ND52Z

Active

LEMO

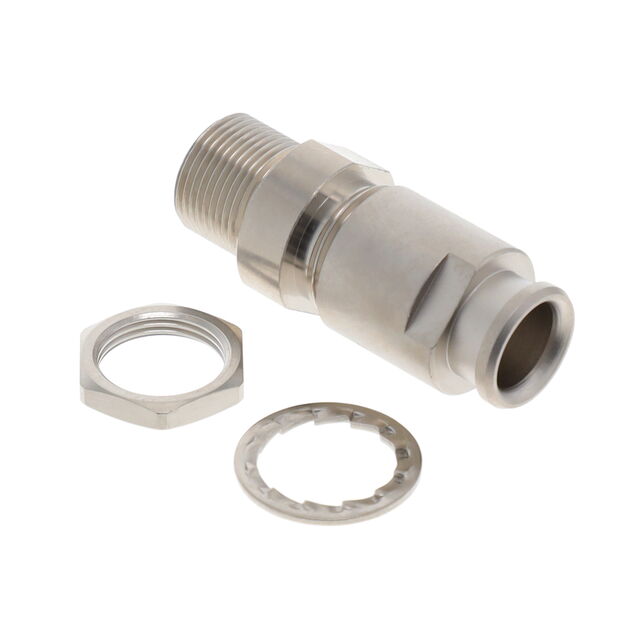

CABLE GRIP 4.2-5.2MM M9 BRASS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GSC.1S.290.ND52Z

Active

LEMO

CABLE GRIP 4.2-5.2MM M9 BRASS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 18.76
		10	$ 16.43
		25	$ 15.72
		50	$ 15.21
		100	$ 14.70
		250	$ 13.89
		500	$ 13.49

Description

General part information

GSC.1S Series

Cable Grip Brass M9x0.6 Silver

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GSC.1S.290.ND52Z	GSC.1S Series

	-	-
Color	Silver	Silver
Includes	Collet Nut	Collet Nut
Ingress Protection	IP50	IP50
Material	Brass	Brass
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Outside Cable Diameter (Max)	-	2.79 - 6.2 mm
Outside Cable Diameter (Max)	-	7.62 mm
Outside Cable Diameter (Max)	-	0.3 in
Outside Cable Diameter (Max) [Max] [diameter]	0.205 "	0.11 - 0.283 "
Outside Cable Diameter (Max) [Max] [diameter]	5.2 mm	4.32 - 7.2 mm
Outside Cable Diameter (Min)	-	0.09 - 0.283 in
Outside Cable Diameter (Min)	-	3.3 mm
Outside Cable Diameter (Min) [Min] [diameter]	4.2 mm	4.2 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.165 in	0.165 - 7.2 in
Panel Hole Size	5 mm	5 mm
Panel Hole Size	0.197 in	0.197 in
Thread Length	7.5 mm	7.5 mm
Thread Length	0.295 in	0.295 in
Thread Size	M9x0.6	M9x0.6
Type	Cable Grip	Cable Grip

GSC.1S Series

CABLE GRIP 4.2-5.2MM M9 BRASS

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Color	Panel Hole Size	Panel Hole Size	Material	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Length	Thread Length	Thread Size	Type	Outside Cable Diameter (Max)	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]
LEMO GSC.1S.290.ND52Z	4.2 mm	0.165 in	Collet Nut	-55 °C	250 °C	Silver	5 mm	0.197 in	Brass	IP50	0.205 "	5.2 mm	7.5 mm	0.295 in	M9x0.6	Cable Grip
LEMO GSC.1S.290.NM27		2.29 mm				Silver	5 mm	0.197 in	Brass	IP50	0.11 in		7.5 mm	0.295 in	M9x0.6	Cable Grip	2.79 mm	0.09 in
LEMO GSC.1S.290.ND42						Silver	5 mm	0.197 in	Brass	IP50	0.17 in	4.32 mm	7.5 mm	0.295 in	M9x0.6	Cable Grip		0.13 in	3.3 mm
LEMO GSC.1S.290.ND72Z		6.2 mm	Collet Nut	-55 °C	250 °C	Silver	5 mm	0.197 in	Brass	IP50	0.283 in	7.2 mm	7.5 mm	0.295 in	M9x0.6	Cable Grip		0.244 in
LEMO GSC.1S.290.NM31Z		2.29 mm	Collet Nut			Silver	5 mm	0.197 in	Brass	IP50			7.5 mm	0.295 in	M9x0.6	Cable Grip		0.09 in
LEMO GSC.1S.290.ND72		6.2 mm		-55 °C	250 °C	Silver	5 mm	0.197 in	Brass	IP50	0.283 in	7.2 mm	7.5 mm	0.295 in	M9x0.6	Cable Grip		0.244 in
LEMO GSC.1S.290.ND76		7.2 mm				Silver	5 mm	0.197 in	Brass	IP50			7.5 mm	0.295 in	M9x0.6	Cable Grip		0.283 in		7.62 mm	0.3 in
LEMO GSC.1S.290.ND42Z			Collet Nut			Silver	5 mm	0.197 in	Brass	IP50	0.17 in	4.32 mm	7.5 mm	0.295 in	M9x0.6	Cable Grip		0.13 in	3.3 mm
LEMO GSC.1S.290.ND62Z		5.2 mm	Collet Nut			Silver	5 mm	0.197 in	Brass	IP50	0.244 in		7.5 mm	0.295 in	M9x0.6	Cable Grip	6.2 mm	0.205 "
LEMO GSC.1S.290.ND62		5.2 mm		-55 °C	250 °C	Silver	5 mm	0.197 in	Brass	IP50	0.244 in		7.5 mm	0.295 in	M9x0.6	Cable Grip	6.2 mm	0.205 "
