031-4804

Active

AMPHENOL RF

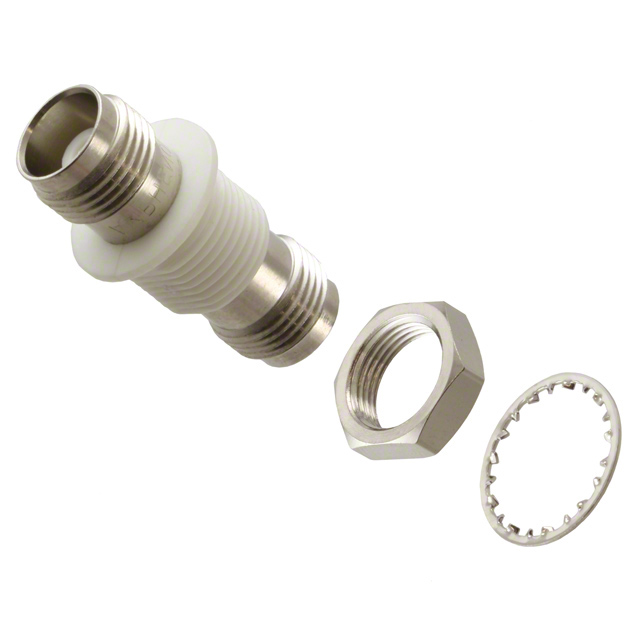

CONN ADAPT JACK-JACK TNC 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

031-4804

Active

AMPHENOL RF

CONN ADAPT JACK-JACK TNC 50 OHM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 35.98
		10	$ 31.51
		25	$ 30.15
		50	$ 29.18
		100	$ 28.20
		250	$ 26.65

Description

General part information

031-48 Series

Adapter Coaxial Connector TNC Jack, Female Socket To TNC Jack, Female Socket 50 Ohms

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	031-4804	031-48 Series

Adapter Series	TNC to TNC	TNC to TNC, BNC to BNC
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Nickel	Silver, Nickel
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper, Phosphor Bronze
Center Contact Plating	Silver	Silver, Gold
Center Gender	Female to Female	Female to Female
Connector Style	-	BNC, TNC
Connector Type	-	Female Socket, Jack, Receptacle
Contact Termination	-	Solder Cup
Conversion Type	Same Series	Same Series
Convert From (Adapter End)	TNC Jack, Female Socket	TNC Jack, Female Socket, BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, TNC Jack	Female Socket, TNC Jack, BNC Jack
Dielectric Material	Polyphenylene Oxide (PPO), Polystyrene (PS)	Polyphenylene Oxide (PPO), Polystyrene (PS), Polytetrafluoroethylene (PTFE)
Fastening Type	-	Bayonet Lock
Features	Isolated	Isolated
Frequency - Max [Max]	11 GHz	1 - 11 GHz
Housing Color	-	White, Silver
Impedance	50 Ohms	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher	1 Nut, 1 Connector, 1 Lockwasher
Insertion Loss	-	0.2 dB
Mating Cycles	500	500
Mounting Feature	Bulkhead	Bulkhead, Bulkhead - Rear Side Nut
Number of Ports	-	1
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Shield Termination	-	Solder
Style	Straight	Straight
Voltage Rating	-	500 V

031-48 Series

CONN BNC RCPT 50 OHM SOLDER

Part	Center Contact Material	Voltage Rating	Contact Termination	Mating Cycles	Impedance	Features	Number of Ports	Body Material	Shield Termination	Insertion Loss	Fastening Type	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Body Finish	Frequency - Max [Max]	Center Contact Plating	Connector Style	Dielectric Material	Center Gender	Convert From (Adapter End)	Style	Convert To (Adapter End)	Conversion Type	Adapter Series	Mounting Feature	Adapter Type	Includes	Housing Color
AMPHENOL RF 031-4890-9	Beryllium Copper	500 V	Solder Cup	500	50 Ohms	Isolated	1	Brass	Solder	0.2 dB	Bayonet Lock	Female Socket, Jack	-65 ░C	165 °C	Silver	1 GHz	Silver	BNC
AMPHENOL RF 031-4804	Beryllium Copper			500	50 Ohms	Isolated		Brass					-65 ░C	165 °C	Nickel	11 GHz	Silver		Polyphenylene Oxide (PPO), Polystyrene (PS)	Female to Female	TNC Jack, Female Socket	Straight	Female Socket, TNC Jack	Same Series	TNC to TNC	Bulkhead	Jack to Jack	1 Connector, 1 Lockwasher, 1 Nut
AMPHENOL RF 031-4818-9	Beryllium Copper	500 V	Solder Cup	500	50 Ohms	Isolated	1	Brass	Solder	0.2 dB	Bayonet Lock	Female Socket, Jack	-65 ░C	165 °C	Silver	1 GHz	Silver	BNC
AMPHENOL RF 031-4805-RFXG	Phosphor Bronze	500 V	Solder Cup	500	50 Ohms	Isolated	1	Brass	Solder			Female Socket, Receptacle	-65 ░C	165 °C	Nickel	11 GHz	Gold	TNC								Bulkhead - Rear Side Nut		1 Connector, 1 Lockwasher, 1 Nut	Silver, White
AMPHENOL RF 031-4890-1	Beryllium Copper	500 V	Solder Cup	500	50 Ohms	Isolated	1	Brass	Solder	0.2 dB	Bayonet Lock	Female Socket, Jack	-65 ░C	165 °C	Silver	4 GHz	Silver	BNC	Polytetrafluoroethylene (PTFE)							Bulkhead - Rear Side Nut		1 Connector, 1 Lockwasher, 1 Nut	Silver, White
AMPHENOL RF 031-4803-1101	Beryllium Copper			500	50 Ohms	Isolated		Brass			Bayonet Lock		-65 ░C	165 °C	Nickel	4 GHz	Gold		Polyphenylene Oxide (PPO), Polystyrene (PS)	Female to Female	BNC Jack, Female Socket	Straight	BNC Jack, Female Socket	Same Series	BNC to BNC	Bulkhead	Jack to Jack	1 Connector, 1 Lockwasher, 1 Nut
