Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VN9004AJTR | VN9004AJ Series |
|---|---|---|
| - | - | |
| Current - Output (Max) [Max] | 108 A | 108 A |
| Fault Protection | Over Voltage, Over Temperature, UVLO, Current Limiting (Adjustable), Reverse Battery | Over Voltage, Over Temperature, UVLO, Current Limiting (Adjustable), Reverse Battery |
| Features | Load Discharge, Status Flag | Load Discharge, Status Flag |
| Grade | Automotive | Automotive |
| Input Type | Non-Inverting | Non-Inverting |
| Interface | Parallel | Parallel |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | High Side | High Side |
| Output Type | N-Channel | N-Channel |
| Package / Case | 0.154 in | 0.154 in |
| Package / Case | 3.9 mm | 3.9 mm |
| Package / Case | 16-PowerLFSOP | 16-PowerLFSOP |
| Qualification | AEC-Q100 | AEC-Q100 |
| Ratio - Input:Output [custom] | 1:1 | 1:1 |
| Rds On (Typ) | 4.2 mOhm | 4.2 mOhm |
| Supplier Device Package | PowerSSO-16 | PowerSSO-16 |
| Switch Type | General Purpose | General Purpose |
| Voltage - Supply (Vcc/Vdd) [Max] | 28 V | 28 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 4 V | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.77 | |
| 10 | $ 2.48 | |||
| 25 | $ 2.14 | |||
| 100 | $ 1.76 | |||
| 250 | $ 1.58 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.37 | |||
| Digi-Reel® | 1 | $ 2.82 | ||
| 10 | $ 2.53 | |||
| 25 | $ 2.39 | |||
| 100 | $ 2.03 | |||
| 250 | $ 1.91 | |||
| 500 | $ 1.67 | |||
| 1000 | $ 1.38 | |||
| Tape & Reel (TR) | 2500 | $ 1.27 | ||
| 5000 | $ 1.21 | |||
| 7500 | $ 1.18 | |||
VN9004AJ Series
Single channel high-side driver with Current Sense analog feedback for automotive applications
| Part | Grade | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Qualification | Output Configuration | Ratio - Input:Output [custom] | Interface | Package / Case | Package / Case | Package / Case | Input Type | Fault Protection | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Current - Output (Max) [Max] | Rds On (Typ) | Features | Supplier Device Package | Number of Outputs | Mounting Type | Switch Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VN9004AJTR | ||||||||||||||||||||||
STMicroelectronics VN9004AJTR | Automotive | 28 V | 4 V | AEC-Q100 | High Side | 1:1 | Parallel | 0.154 in | 3.9 mm | 16-PowerLFSOP | Non-Inverting | Current Limiting (Adjustable), Over Temperature, Over Voltage, Reverse Battery, UVLO | 150 °C | -40 °C | N-Channel | 108 A | 4.2 mOhm | Load Discharge, Status Flag | PowerSSO-16 | 1 | Surface Mount | General Purpose |
STMicroelectronics VN9004AJTR |
Description
General part information
VN9004AJ Series

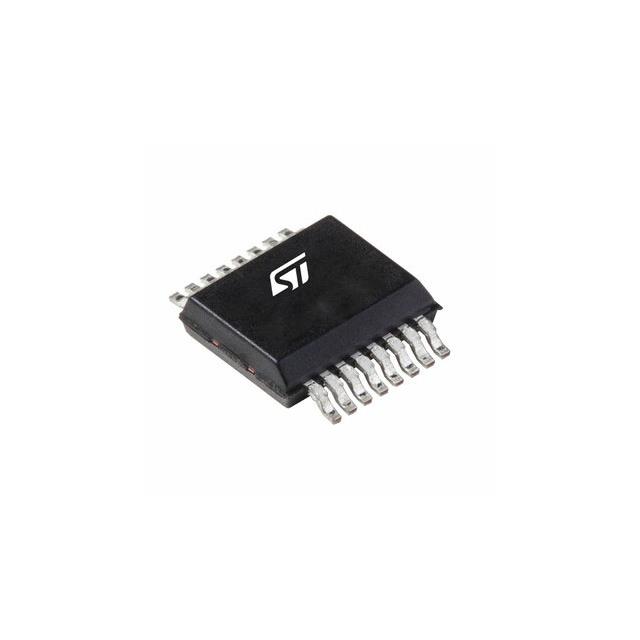

The device is a single channel high-side driver manufactured using ST proprietary VIPower M0-9 technology and housed in a PowerSSO-16 package. The device is designed to drive 12 V automotive grounded loads through a 3 V and 5 V CMOS-compatible interface, providing protection and diagnostics.
The device integrates advanced protective functions such as load current limitation, overload active management by power limitation and overtemperature shutdown with configurable latch-off.
A FaultRST pin unlatches the output in case of fault or disables the latch-off functionality.
