BU-6162-M-24-2

Active

Mueller Electric Co

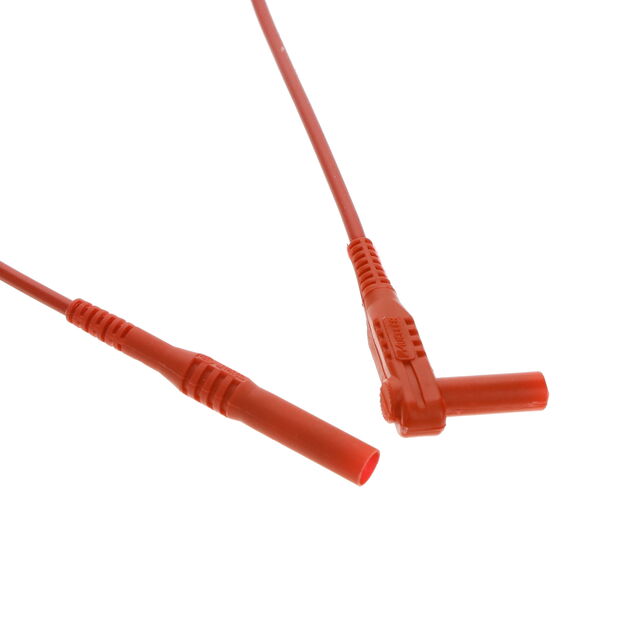

RED RT ANGLE SHROUDED BANANA PLUG TO SHROUDED BANANA PLUG-SILICONE 24" 18G

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

BU-6162-M-24-2

Active

Mueller Electric Co

RED RT ANGLE SHROUDED BANANA PLUG TO SHROUDED BANANA PLUG-SILICONE 24" 18G

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BU-6162-M-24-2

1st Connector	Sheathed, Single, Banana Plug
2nd Connector	Banana Plug, Single, Sheathed, Right Angle
Cable Length	24 "
Cable Length	609.6 mm
Configuration	Banana to Banana
Contents	Red
Contents [custom]	1
Current Rating (Amps)	20 A
Material - Insulation	Silicone
Stacking Method	Non Stackable
Type	Patch Cord
Wire Gauge	18 AWG

BU-6162 Series

Part	Type	Contents	Cable Length	Cable Length	Material - Insulation	Wire Gauge	Stacking Method	Current Rating (Amps)	1st Connector	Configuration	2nd Connector	Contents [custom]
Mueller Electric Co BU-6162-M-39-0	Patch Cord	1 Lead Black	990.6 mm	39 in	Silicone	18 AWG	Non Stackable	20 A	Banana Plug Sheathed Single	Banana to Banana	Banana Plug Single Sheathed Right Angle
Mueller Electric Co BU-6162-M-72-2	Patch Cord	Red	1828.8 mm	72 in	Silicone	18 AWG	Non Stackable	20 A	Banana Plug Sheathed Single	Banana to Banana	Banana Plug Single Sheathed Right Angle	1
Mueller Electric Co BU-6162-M-39-2	Patch Cord	Red	990.6 mm	39 in	Silicone	18 AWG	Non Stackable	20 A	Banana Plug Sheathed Single	Banana to Banana	Banana Plug Single Sheathed Right Angle	1
Mueller Electric Co BU-6162-M-60-0	Patch Cord	1 Lead Black	1524 mm	5 ft	Silicone	18 AWG	Non Stackable	20 A	Banana Plug Sheathed Single	Banana to Banana	Banana Plug Single Sheathed Right Angle
Mueller Electric Co BU-6162-M-24-2	Patch Cord	Red	609.6 mm	24 "	Silicone	18 AWG	Non Stackable	20 A	Banana Plug Sheathed Single	Banana to Banana	Banana Plug Single Sheathed Right Angle	1
Mueller Electric Co BU-6162-M-72-0	Patch Cord	1 Lead Black	1828.8 mm	72 in	Silicone	18 AWG	Non Stackable	20 A	Banana Plug Sheathed Single	Banana to Banana	Banana Plug Single Sheathed Right Angle
Mueller Electric Co BU-6162-M-60-2	Patch Cord	Red	1524 mm	5 ft	Silicone	18 AWG	Non Stackable	20 A	Banana Plug Sheathed Single	Banana to Banana	Banana Plug Single Sheathed Right Angle	1
Mueller Electric Co BU-6162-M-24-0	Patch Cord	1 Lead Black	609.6 mm	24 "	Silicone	18 AWG	Non Stackable	20 A	Banana Plug Sheathed Single	Banana to Banana	Banana Plug Single Sheathed Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.24
		10	$ 15.69
		100	$ 14.96
		500	$ 14.47
Newark	Each	50	$ 20.81
		100	$ 20.13
		250	$ 19.45

Description

General part information

BU-6162 Series

24.0" (609.60mm) Banana Plug, Single, Sheathed To Banana Plug, Single, Sheathed, Right Angle Patch Cord 3000V (3kV)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
