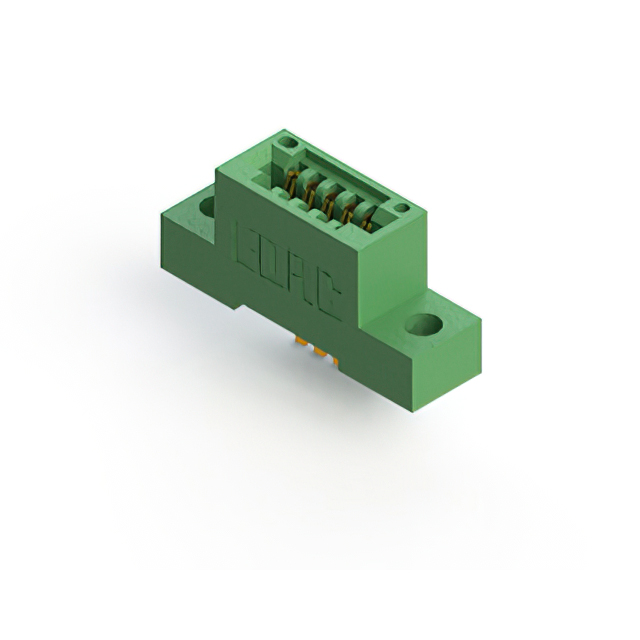

845-005-544-104
ActiveEDAC Inc.
2.54MM 5P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
845-005-544-104
ActiveEDAC Inc.
2.54MM 5P -40℃~+125℃ PLUGIN,P=2.54MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 845-005-544-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions/Bay/Row [custom] | 5 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
845-005 Series
...
| Part | Pitch [x] | Pitch [x] | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Positions/Bay/Row [custom] | Read Out | Gender | Termination | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish | Mounting Type | Flange Feature | Contact Material | Material - Insulation | Contact Type | Card Type | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Solder | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | ||||
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Solder | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole Right Angle | M3 Threaded Insert Top Mount Opening | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | ||||
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Solder | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole Right Angle | Top Mount Opening Unthreaded | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | 0.156 in | 3.96 mm | ||
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Wire Wrap | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | Side Mount Opening Unthreaded | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | 3.25 mm | 0.128 in | ||
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Wire Wrap | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | Flush Mount Top Opening Unthreaded | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | 0.156 in | 3.96 mm | ||
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Solder | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | ||||
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Wire Wrap | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | M3 Threaded Insert Top Mount Opening | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | ||||
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Solder | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole Right Angle | Top Mount Opening Unthreaded | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | 0.156 in | 3.96 mm | ||
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Solder Eyelet(s) | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | Floating Bobbin Top Mount Opening | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | 0.116 in | 2.95 mm | ||
EDAC Inc. | 2.54 mm | 0.1 in | 125 °C | -40 °C | Green | 5 | Single | Female | Solder | 1 | 10 Áin | 0.25 Ám | 1 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Gold | Through Hole | Copper Alloy | Diallyl Phthalate (DAP) | Cantilever | Non Specified - Single Edge | 3.25 mm | 0.128 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
845-005 Series
5 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
