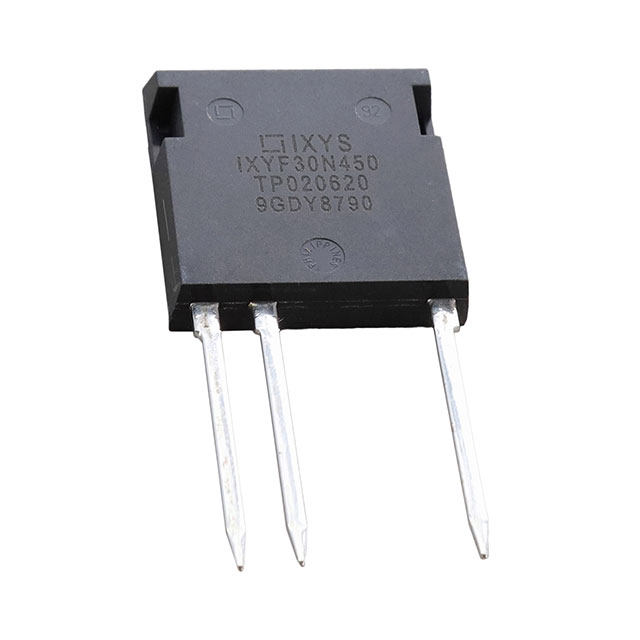

IXYF30N450

Active

IXYS

IGBT 4500V 23A ISOPLUSI4

Search across all available documentation for this part.

Active

IXYS

IGBT 4500V 23A ISOPLUSI4

Technical Specifications

Parameters and characteristics for this part

Specification	IXYF30N450

Current - Collector (Ic) (Max)	23 A
Current - Collector Pulsed (Icm)	190 A
Gate Charge	88 nC
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	ISOPLUSi5-Pak™
Power - Max [Max]	230 W
Supplier Device Package	ISOPLUS i4-PAC™
Td (on/off) @ 25°C	168 ns, 38 ns
Test Condition [custom]	15 Ohm
Test Condition [custom]	30 A
Test Condition [custom]	960 V, 15 V
Vce(on) (Max) @ Vge, Ic	3.9 V
Voltage - Collector Emitter Breakdown (Max)	4500 V

Part	Current - Collector Pulsed (Icm)	Mounting Type	Test Condition [custom]	Test Condition [custom]	Test Condition [custom]	Power - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Gate Charge	Current - Collector (Ic) (Max)	Td (on/off) @ 25°C	Voltage - Collector Emitter Breakdown (Max)	Vce(on) (Max) @ Vge, Ic	Package / Case
IXYS IXYF30N450	190 A	Through Hole	15 Ohm	30 A	15 V 960 V	230 W	-55 °C	150 °C	ISOPLUS i4-PAC™	88 nC	23 A	38 ns 168 ns	4500 V	3.9 V	ISOPLUSi5-Pak™
