829264-3

Active

TE Connectivity AMP Connectors

CONN RCPT 6POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

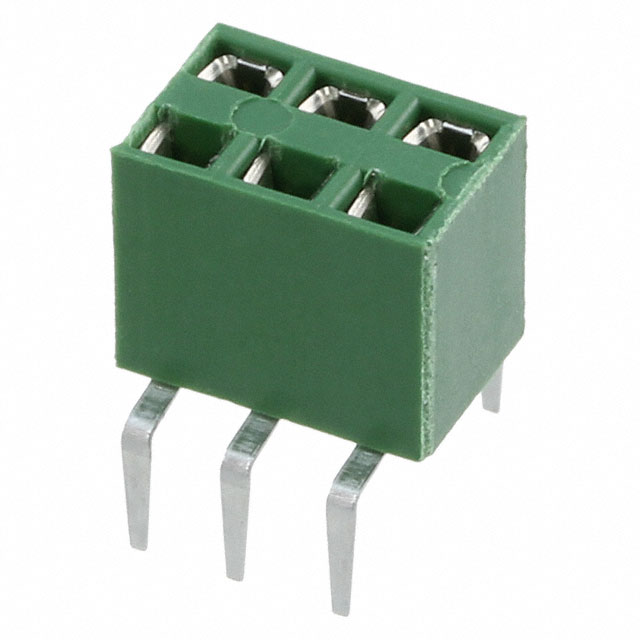

829264-3

Active

TE Connectivity AMP Connectors

CONN RCPT 6POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.19
		10	$ 1.09
		240	$ 0.97
		480	$ 0.95
		960	$ 0.94

Description

General part information

829264 Series

6 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	829264-3	829264 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	31.5 µin	31.5 µin
Contact Finish Thickness - Mating	0.8 µm	0.8 µm
Contact Finish Thickness - Post	3 µm	3 µm
Contact Finish Thickness - Post	118.1 µin	118.1 µin
Contact Length - Post [x]	0.12 in	0.12 in
Contact Length - Post [x]	3.05 mm	3.05 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black or Green	Green, Black or Green
Insulation Height	0.244 in	0.244 in
Insulation Height	6.2 mm	6.2 mm
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole	Through Hole
Number of Positions	6	6 - 64
Number of Positions Loaded	All	All
Number of Rows	2	2
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder

829264 Series

CONN RCPT 36POS 0.1 GOLD PCB

Part	Contact Material	Contact Finish - Post	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Color	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions Loaded	Contact Type	Contact Shape	Connector Type	Number of Positions	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating
TE Connectivity AMP Connectors 1-829264-8	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle	36	2	31.5 µin	0.8 µm	Gold
TE Connectivity AMP Connectors 829264-9	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle	18	2	31.5 µin	0.8 µm	Gold
TE Connectivity AMP Connectors 829264-3	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Black or Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle	6	2	31.5 µin	0.8 µm	Gold
TE Connectivity AMP Connectors 2-829264-5	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle	50	2	31.5 µin	0.8 µm	Gold
TE Connectivity AMP Connectors 1-829264-5	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle	30	2	31.5 µin	0.8 µm	Gold
TE Connectivity AMP Connectors 2-829264-2	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle	44	2	31.5 µin	0.8 µm	Gold
TE Connectivity AMP Connectors 1-829264-1	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle	22 positions	2	31.5 µin	0.8 µm	Gold
TE Connectivity AMP Connectors 829264-5	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle	10	2	31.5 µin	0.8 µm	Gold
TE Connectivity AMP Connectors 1-829264-6	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle		2	31.5 µin	0.8 µm	Gold
TE Connectivity AMP Connectors 2-829264-6	Copper Alloy	Tin	0.244 in	6.2 mm	0.1 in	2.54 mm	Push-Pull	Green	Through Hole	3 µm	118.1 µin	Polybutylene Terephthalate (PBT)	2.54 mm	0.1 in	Solder	0.12 in	3.05 mm	All	Female Socket	Square	Receptacle	52	2	31.5 µin	0.8 µm	Gold
