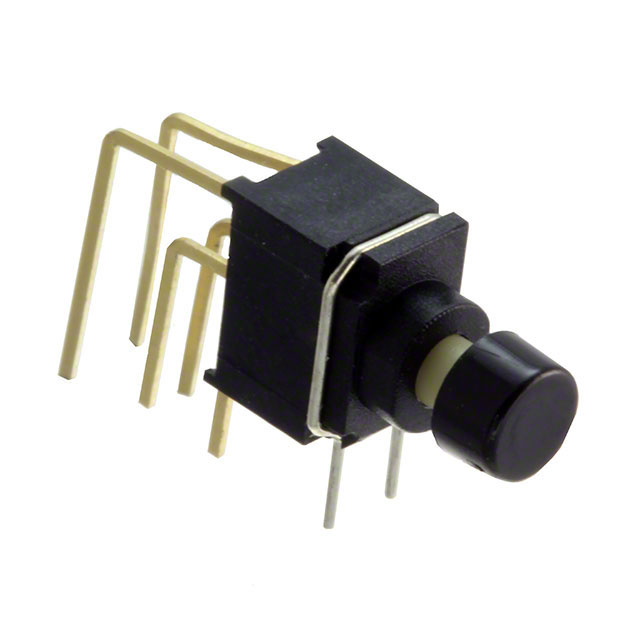

800UDP8P1A1M7RER1BLK

Active

E-Switch

SWITCH PUSH DPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH PUSH DPDT 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Specification	800UDP8P1A1M7RER1BLK

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	6000 Cycles
Features	Epoxy Sealed Terminals
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	40000 Cycles
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Standard
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

Part	Features	Mounting Type	Circuit	Color - Actuator/Cap	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Voltage Rating - AC	Ingress Protection	Switch Function	Mechanical Life	Voltage Rating - DC	Type	Current Rating (Amps)	Actuator Marking	Electrical Life	Actuator Type
E-Switch 800UDP8P1A1M7RER1BLK	Epoxy Sealed Terminals	Right Angle Through Hole Vertical	DPDT	Black	-30 ░C	85 °C	PC Pin	20 V	IP67 - Dust Tight Waterproof	On-Mom	40000 Cycles	20 V	Standard	0.4 VA	No Marking	6000 Cycles	Button Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	504	$ 2.72

General part information

Pushbutton Switch DPDT Standard Through Hole, Right Angle, Vertical
