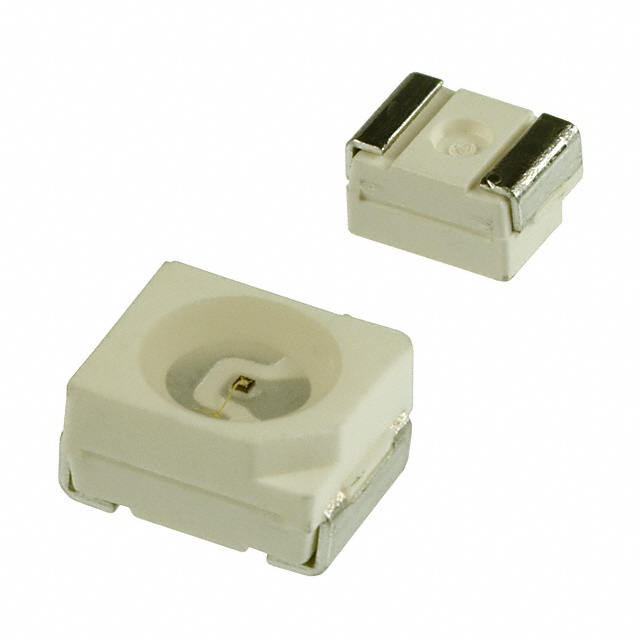

VFHY1104LS-TR
ActiveStanley Electric Co
LED UNI-COLOR YELLOW 594NM 2-PIN PLCC T/R
VFHY1104LS-TR
ActiveStanley Electric Co
LED UNI-COLOR YELLOW 594NM 2-PIN PLCC T/R
Description
General part information
VFHY1104 Series
Yellow 589nm LED Indication - Discrete 2V 2-PLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | VFHY1104LS-TR |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) | 2.1 mm |
| Lens Color | Colorless |
| Lens Diameter | 2.4 mm |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 170 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Package Name | 2-PLCC |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 2.8 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 589 nm |
| Wavelength - Peak | 594 nm |
