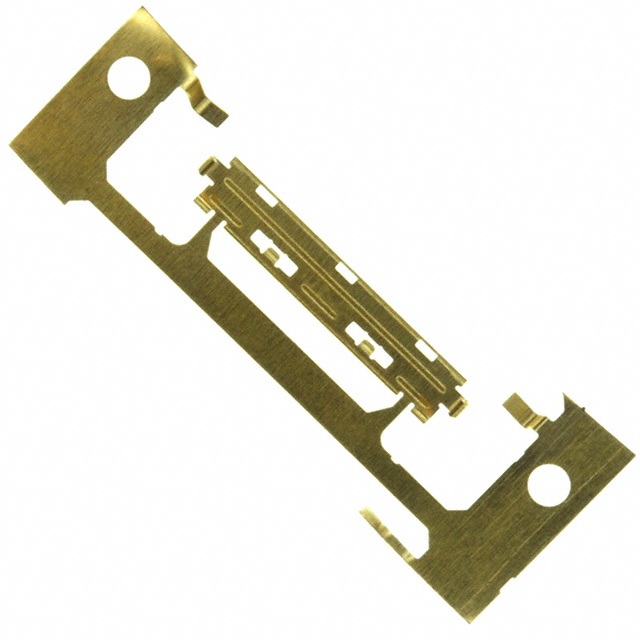

FI-J20C2-SH-D-10000

Obsolete

JAE Electronics

CONN COVER FOR 20POS PLUG

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN COVER FOR 20POS PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	FI-J20C2-SH-D-10000

Accessory Type	Cap (Cover)
For Use With/Related Products	FI-J Series
Number of Positions	20

Part	Number of Positions	Accessory Type	For Use With/Related Products	Connector Type	Number of Rows	Voltage Rating	Contact Type	Contact Finish - Mating	Contact Material	Insulation Color	Style	Contact Finish - Post	Contact Finish Thickness - Post	Applications	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Insulation Height	Insulation Height	Mated Stacking Heights	Current Rating (Amps)	Termination	Fastening Type	Material Flammability Rating	Pitch [x]	Pitch [x]	Cable Termination	Contact Finish	Wire Gauge [Max]	Wire Gauge [Min]	Color
JAE Electronics FI-J20C2-SH-D-10000	20	Cap (Cover)	FI-J Series
JAE Electronics FI-J20S-VF15N	20			Receptacle	1	50 V	Non-Gendered	Gold	Copper Alloy	Black	Board to Cable/Wire	Gold	Flash	General Purpose	Plastic	0.099 µm	3.9 µin	Pick and Place Solder Retention	85 °C	-40 °C	Surface Mount	0.016 in	0.4 mm	All	1.16 mm	0.046 in	1.58 mm	0.3 A	Solder	Friction Lock	UL94 V-0
JAE Electronics FI-J20C5	20			Plug	1		Non-Gender Specific														Free Hanging (In-Line)											0.016 in	0.4 mm	Solder	Gold	46 AWG	42 AWG	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Connector Cap (Cover) For FI-J Series

Technical documentation and resources
