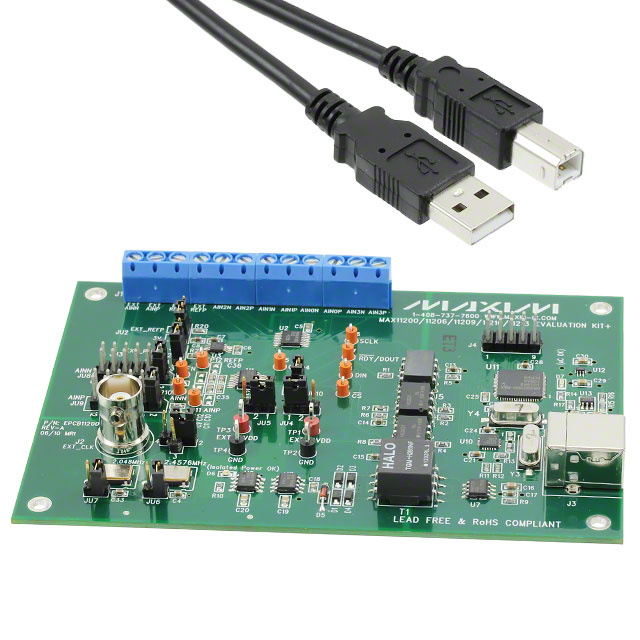

MAX11210EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX11210
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAX11210EVKIT+
ActiveAnalog Devices Inc./Maxim Integrated
EVAL BOARD FOR MAX11210
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX11210EVKIT+ | MAX11210 Series |
|---|---|---|
| Architecture | - | Sigma-Delta |
| Configuration | - | ADC |
| Data Interface | QSPI™, Serial, SPI™, MICROWIRE™ | SPI, QSPI™, Serial, SPI™, MICROWIRE™ |
| Features | - | PGA |
| Input Range | ±VREF | ±VREF |
| Input Type | - | Differential |
| Mounting Type | - | Surface Mount |
| Number of A/D Converters | 1 | 1 |
| Number of Bits | 24 | 24 |
| Number of Inputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 0.154 in |
| Package / Case | - | 16-SSOP |
| Package / Case | - | 3.9 mm |
| Reference Type | - | External |
| Sampling Rate (Per Second) | - | 480 Per Second |
| Supplied Contents | Cable(s), Board(s) | Cable(s), Board(s) |
| Supplier Device Package | - | 16-QSOP |
| Utilized IC / Part | MAX11210 | MAX11210 |
| Voltage - Supply, Analog | - | 2.7 V |
| Voltage - Supply, Analog | - | 3.6 V |
| Voltage - Supply, Digital | - | 3.6 V |
| Voltage - Supply, Digital | - | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 120.12 | |
MAX11210 Series
IC ADC 24BIT SIGMA-DELTA 16QSOP
| Part | Input Type | Architecture | Number of Inputs | Number of A/D Converters | Configuration | Package / Case | Package / Case | Package / Case | Mounting Type | Features | Number of Bits | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Supply, Digital [Max] | Voltage - Supply, Digital [Min] | Sampling Rate (Per Second) | Reference Type | Data Interface | Supplier Device Package | Voltage - Supply, Analog [Min] | Voltage - Supply, Analog [Max] | Input Range | Utilized IC / Part | Supplied Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX11210EEE+T | Differential | Sigma-Delta | 1 | 1 | ADC | 0.154 in | 16-SSOP | 3.9 mm | Surface Mount | PGA | 24 | 85 °C | -40 °C | 3.6 V | 1.7 V | 480 Per Second | External | SPI | 16-QSOP | 2.7 V | 3.6 V | |||
Analog Devices Inc./Maxim Integrated MAX11210EVKIT+ | 1 | 24 | MICROWIRE™, QSPI™, Serial, SPI™ | ±VREF | MAX11210 | Board(s), Cable(s) |
Description
General part information
MAX11210 Series
MAX11210 - 24 Bit Samples per Second Analog to Digital Converter (ADC) Evaluation Board
