9120-4500PL

Active

3M (TC)

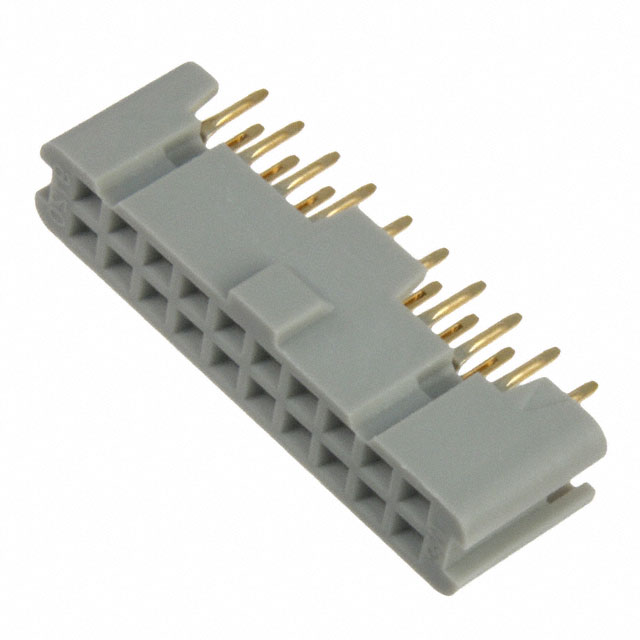

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE MOUNT, 9100 SERIES

Search across all available documentation for this part.

Active

3M (TC)

PCB RECEPTACLE, BOARD-TO-BOARD, 2.54 MM, 2 ROWS, 20 CONTACTS, THROUGH HOLE MOUNT, 9100 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	9120-4500PL

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	12 µin
Contact Finish Thickness - Mating	0.3 µm
Contact Finish Thickness - Post	Flash
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key
Insulation Color	Gray
Insulation Height	9 mm
Insulation Height	0.354 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Kinked Pin, Solder
Voltage Rating	1000 VDC

Part	Style	Number of Positions	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Features	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Fastening Type	Mounting Type	Contact Finish - Mating	Insulation Height	Insulation Height	Voltage Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Termination	Contact Shape	Number of Rows	Contact Type	Contact Material	Insulation Color
3M (TC) 9120-4500PL	Board to Board Cable	20	Receptacle	12 µin	0.3 µm	Polybutylene Terephthalate (PBT) Glass Filled	Polarizing Key	0.11 in	2.79 mm	105 ░C	-55 °C	0.1 in	2.54 mm	Push-Pull	Through Hole	Gold	9 mm	0.354 in	1000 VDC	2.54 mm	0.1 in	UL94 V-0	Gold	Flash	All	Kinked Pin Solder	Square	2	Female Socket	Copper Alloy	Gray
3M (TC) 9120-4500JL	Board to Board Cable	20	Receptacle	12 µin	0.3 µm	Polybutylene Terephthalate (PBT) Glass Filled	Polarizing Key	0.11 in	2.79 mm	105 ░C	-55 °C	0.1 in	2.54 mm	Push-Pull	Through Hole	Gold	9 mm	0.354 in	1000 VDC	2.54 mm	0.1 in	UL94 V-0	Gold	Flash	All	Solder	Square	2	Female Socket	Copper Alloy	Gray
