FTM-107-03-F-DV-P-TR - FTM-107-03-F-DV-P-TR

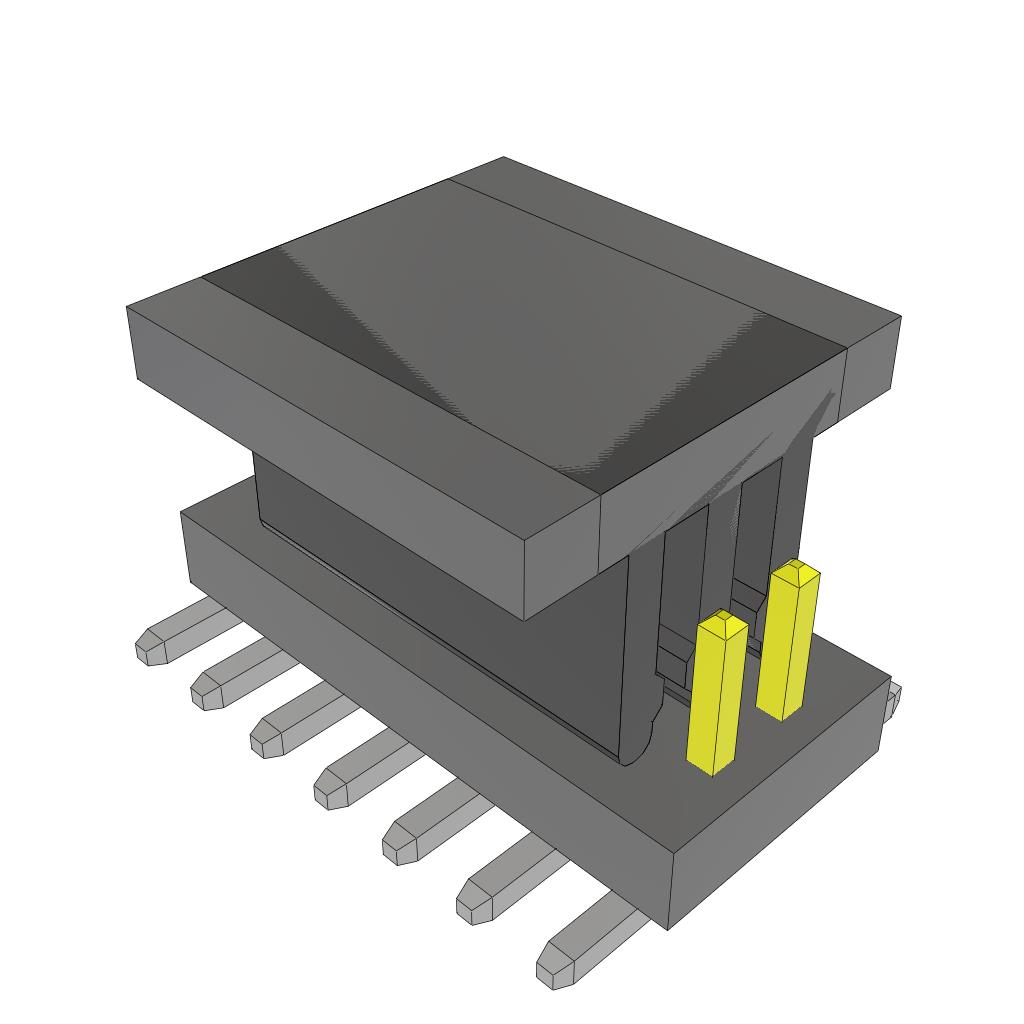

FTM-107-03-F-DV-P-TR

Active
Samtec Inc.

CONN HEADER SMD 14POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFTM DatasheetCLM Series Other Related Documents 03+2
FTM-107-03-F-DV-P-TR - FTM-107-03-F-DV-P-TR

FTM-107-03-F-DV-P-TR

Active
Samtec Inc.

CONN HEADER SMD 14POS 1MM

Deep-Dive with AI

DocumentsFTM DatasheetCLM Series Other Related Documents 03+2

Technical Specifications

Parameters and characteristics for this part

SpecificationFTM-107-03-F-DV-P-TR
Connector TypeCuttable, Header
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating3 µin
Contact Finish Thickness - Mating0.076 µm
Contact Length - Mating0.065 in
Contact Length - Mating1.65 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)2.8 A per Contact
Fastening TypePush-Pull
FeaturesPick and Place
Insulation ColorBlack
Insulation Height0.038 in
Insulation Height0.97 mm
Insulation MaterialLiquid Crystal Polymer (LCP)
Mounting TypeSurface Mount
Number of Positions14
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pitch - Mating0.039 in
Pitch - Mating1 mm
Row Spacing - Mating0.039 "
Row Spacing - Mating1 mm
ShroudingUnshrouded
TerminationSolder

FTM-107 Series

PartPitch - MatingPitch - MatingTerminationNumber of Positions LoadedInsulation ColorMounting TypeConnector TypeContact Length - MatingContact Length - MatingContact Finish - MatingOperating Temperature [Min]Operating Temperature [Max]ShroudingFeaturesCurrent Rating (Amps)Insulation HeightInsulation HeightContact TypeNumber of RowsContact MaterialRow Spacing - MatingRow Spacing - MatingContact Finish Thickness - MatingContact Finish Thickness - MatingNumber of PositionsInsulation MaterialContact ShapeContact Finish - PostFastening TypeContact Finish Thickness - MatingContact Length - Mating [x]Contact Length - Mating [x]
Samtec Inc.
FTM-107-03-L-DV-S-P-TR
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
0.065 in
1.65 mm
Gold
-55 °C
125 °C
Unshrouded
End Shrouds
Pick and Place
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
10 çin
0.25 çm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
Samtec Inc.
FTM-107-03-L-DV-P-TR
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
0.065 in
1.65 mm
Gold
-55 °C
125 °C
Unshrouded
Pick and Place
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
10 çin
0.25 çm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
Samtec Inc.
FTM-107-03-FM-DV
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
0.065 in
1.65 mm
Gold
-55 °C
125 °C
Unshrouded
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
Flash
Samtec Inc.
FTM-107-03-L-DV-S
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
0.065 in
1.65 mm
Gold
-55 °C
125 °C
Unshrouded
End Shrouds
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
10 çin
0.25 çm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
Samtec Inc.
FTM-107-02-FM-DV-SA
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
Gold
-55 °C
125 °C
Unshrouded
Board Guide
End Shrouds
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
Flash
1.9 mm
0.075 in
Samtec Inc.
FTM-107-03-L-DV-SA
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
0.065 in
1.65 mm
Gold
-55 °C
125 °C
Unshrouded
Board Guide
End Shrouds
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
10 çin
0.25 çm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
Samtec Inc.
FTM-107-03-FM-DV-P-TR
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
0.065 in
1.65 mm
Gold
-55 °C
125 °C
Unshrouded
Pick and Place
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
Flash
Samtec Inc.
FTM-107-03-F-DV-P-TR
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
0.065 in
1.65 mm
Gold
-55 °C
125 °C
Unshrouded
Pick and Place
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
3 µin
0.076 µm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
Samtec Inc.
FTM-107-03-LM-DV-S
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
0.065 in
1.65 mm
Gold
-55 °C
125 °C
Unshrouded
End Shrouds
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
Samtec Inc.
FTM-107-02-F-DV-S-P
0.039 in
1 mm
Solder
All
Black
Surface Mount
Cuttable
Header
Gold
-55 °C
125 °C
Unshrouded
End Shrouds
Pick and Place
2.8 A per Contact
0.038 in
0.97 mm
Male Pin
2
Phosphor Bronze
0.039 "
1 mm
3 µin
0.076 µm
14
Liquid Crystal Polymer (LCP)
Square
Tin
Push-Pull
1.9 mm
0.075 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyDigi-Reel® 1$ 2.78
10$ 2.52
100$ 2.22
500$ 1.89
Tape & Reel (TR) 1000$ 1.61
2000$ 1.56
3000$ 1.50
5000$ 1.44

Description

General part information

FTM-107 Series

Connector Header Surface Mount 14 position 0.039" (1.00mm)
