TA3MS11

Active

Switchcraft Inc.

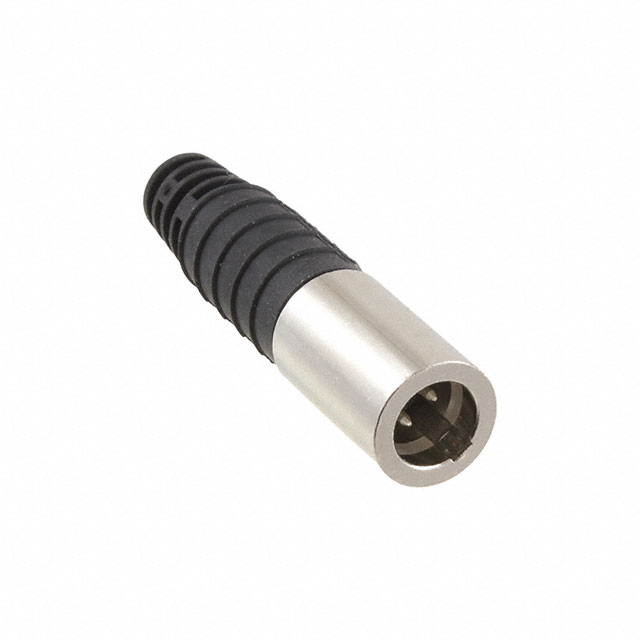

CONN TINI PLUG M 3 POS CRIMP ST CABLE MOUNT 3 TERMINAL 1 PORT

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN TINI PLUG M 3 POS CRIMP ST CABLE MOUNT 3 TERMINAL 1 PORT

Technical Specifications

Parameters and characteristics for this part

Specification	TA3MS11

Applications	Audio, Medical
Backshell Material, Plating	Thermoplastic, Thermoplastic Rubber
Cable Opening [Max] [diameter]	3.05 mm
Cable Opening [Max] [diameter]	0.12 in
Cable Opening [Min] [diameter]	2.54 mm
Cable Opening [Min] [diameter]	0.1 in
Color	Black, Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Cable Clamp
Ingress Protection	IP66, IP65
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	Mini XLR
Voltage Rating	125 VAC

CONN TINI PLUG M 3 POS CRIMP ST CABLE MOUNT 3 TERMINAL 1 PORT

Part	Mounting Type	Color	Ingress Protection	Applications	Shell Size - Insert	Contact Finish - Mating	Primary Material	Features	Current Rating (Amps)	Contact Material	Voltage Rating	Backshell Material, Plating	Connector Type	Insert Material	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Shell Material	Shell Finish	Fastening Type	Orientation
Switchcraft Inc. TA3MS11	Free Hanging (In-Line)	Black, Silver	IP65, IP66	Audio, Medical	Mini XLR	Silver	Metal	Backshell, Cable Clamp, Strain Relief	5 A	Copper Alloy	125 VAC	Thermoplastic, Thermoplastic Rubber	Male Pins, Receptacle	Thermoplastic	3.05 mm	0.12 in	2.54 mm	0.1 in	Copper Alloy	Nickel	Latch Lock	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
