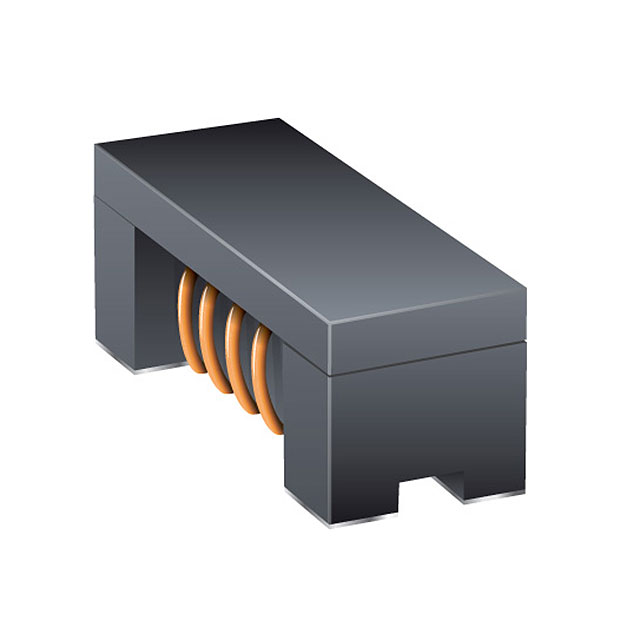

SRF3216A-900Y

Active

Bourns Inc.

CMC 400MA 2LN 90OHM SMD AEC-Q200

Search across all available documentation for this part.

Active

Bourns Inc.

CMC 400MA 2LN 90OHM SMD AEC-Q200

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - DC	Mounting Type	Current Rating (Max) [Max]	Number of Lines	Height (Max) [Max]	Height (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	DC Resistance (DCR) (Max) [Max]	Ratings	Impedance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case
Bourns Inc. SRF3216A-900Y	50 VDC	Surface Mount	400 mA	2	0.087 in	2.2 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	300 mOhm	AEC-Q200	90 Ohms	125 °C	-40 °C	4 Lead	Horizontal
Bourns Inc. SRF3216A-261Y	50 VDC	Surface Mount	300 mA	2	0.087 in	2.2 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	500 mOhm	AEC-Q200	260 Ohms	125 °C	-40 °C	4 Lead	Horizontal
Bourns Inc. SRF3216A-222Y	50 VDC	Surface Mount	200 mA	2	0.087 in	2.2 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	1.2 Ohm		2.2 kOhms	125 °C	-40 °C	4 Lead	Horizontal
Bourns Inc. SRF3216A-361Y	50 VDC	Surface Mount	300 mA	2	0.087 in	2.2 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	600 mOhm	AEC-Q200	360 Ohms	125 °C	-40 °C	4 Lead	Horizontal
Bourns Inc. SRF3216A-161Y	50 VDC	Surface Mount	350 mA	2	0.087 in	2.2 mm	0.063 in	1.6 mm	0.126 "	3.2 mm	400 mOhm	AEC-Q200	160 Ohms	125 °C	-40 °C	4 Lead	Horizontal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Line Common Mode Choke Surface Mount 90 Ohms @ 100 MHz 400mA DCR 300mOhm
