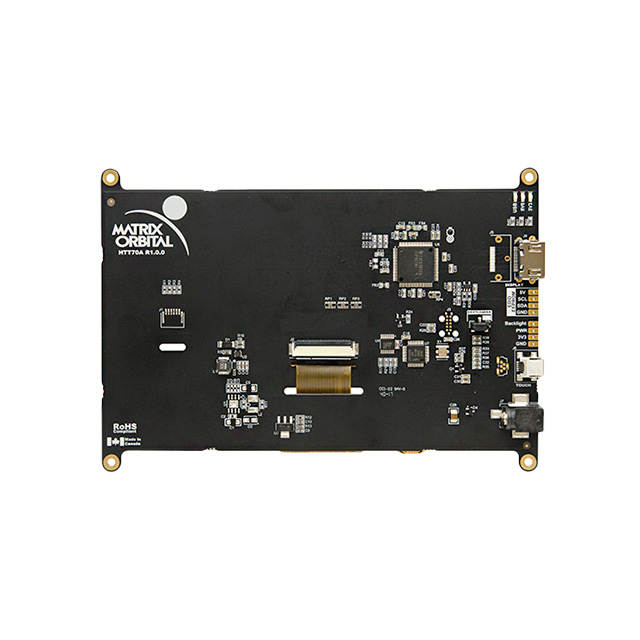

Specification	HTT70A-TPN-BLM-B0-H5-CH-VPT

Background Color	Black
Diagonal Screen Size	7 in
Display Mode	Transmissive
Display Type	TFT - Color
Dot Pitch Height	0.18 mm
Dot Pitch Width	0.19 mm
Dot Pixels (Horizontal)	800 pixels
Dot Pixels (Resolution)	WVGA
Dot Pixels (Vertical)	480 pixels
Graphics Color	Red, Green, Blue
Interface	HDMI
Viewing Area Height	89.1 mm
Viewing Area Width	157 mm

HTT70A Series

Part	Dot Pitch Width	Dot Pitch Height	Display Type	Viewing Area Width	Viewing Area Height	Interface	Dot Pixels (Vertical)	Dot Pixels (Resolution)	Dot Pixels (Horizontal)	Graphics Color	Diagonal Screen Size	Display Mode	Background Color	Touchscreen
Matrix Orbital HTT70A-TPN-BLM-B0-H6-CH-V5	0.19 mm	0.18 mm	TFT - Color	157 mm	89.1 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black
Matrix Orbital HTT70A-TPC-BLM-B0-H5-CH-V5	0.19 mm	0.18 mm	TFT - Color	155.08 mm	86.92 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black	Capacitive
Matrix Orbital HTT70A-TPC-BLM-B0-H6-CH-VPT	0.19 mm	0.18 mm	TFT - Color	155.08 mm	86.92 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black	Capacitive
Matrix Orbital HTT70A-TPN-BLM-B0-H5-CH-VPT	0.19 mm	0.18 mm	TFT - Color	157 mm	89.1 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black
Matrix Orbital HTT70A-TPC-BLM-B0-H5-CH-VPT	0.19 mm	0.18 mm	TFT - Color	155.08 mm	86.92 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black	Capacitive
Matrix Orbital HTT70A-TPR-BLM-B0-H5-CH-V5	0.19 mm	0.18 mm	TFT - Color	157 mm	89.1 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black	Resistive
Matrix Orbital HTT70A-TPR-BLM-B0-H6-CH-V5	0.19 mm	0.18 mm	TFT - Color	157 mm	89.1 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black	Resistive
Matrix Orbital HTT70A-TPN-BLM-B0-H6-CH-VPT	0.19 mm	0.18 mm	TFT - Color	157 mm	89.1 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black
Matrix Orbital HTT70A-TPN-BLM-B0-H5-CH-V5	0.19 mm	0.18 mm	TFT - Color	157 mm	89.1 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black
Matrix Orbital HTT70A-TPR-BLM-B0-H5-CH-VPT	0.19 mm	0.18 mm	TFT - Color	157 mm	89.1 mm	HDMI	480 pixels	WVGA	800 pixels	Blue Green Red	7 in	Transmissive	Black	Resistive

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

HTT70A-TPN-BLM-B0-H5-CH-VPT | Datasheet
