S2M-115-01-S-D
ActiveSamtec Inc.

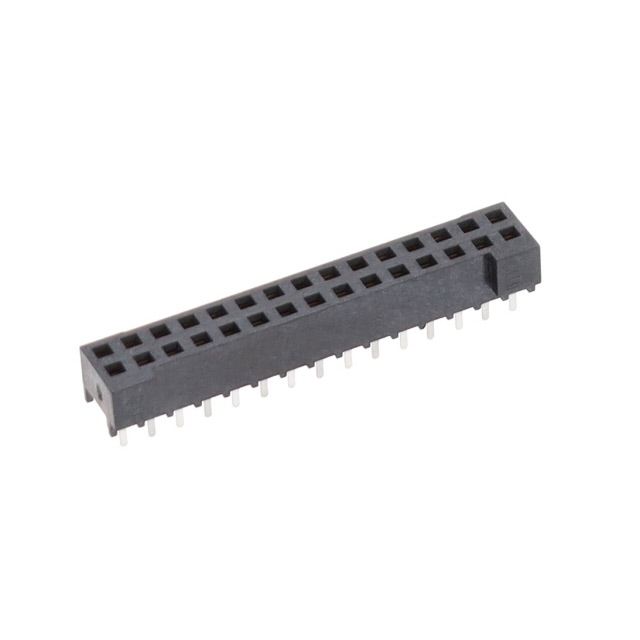

2.00 MM TIGER EYE PCB MOUNT SOC
Deep-Dive with AI
Search across all available documentation for this part.
S2M-115-01-S-D
ActiveSamtec Inc.
2.00 MM TIGER EYE PCB MOUNT SOC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S2M-115-01-S-D |
|---|---|
| Connector Type | Socket |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post [x] | 2.08 mm |
| Contact Length - Post [x] | 0.082 " |
| Contact Material | Beryllium Copper |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 2.6 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 4.51 mm |
| Insulation Height | 0.178 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 30 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 9.31 | |
| 10 | $ 8.60 | |||
| 25 | $ 8.13 | |||
| 50 | $ 7.84 | |||
| 100 | $ 7.31 | |||
Description
General part information
S2M-115 Series
30 Position Socket Connector 0.079" (2.00mm) Through Hole Gold
