AAA3MWZ

Active

Switchcraft Inc.

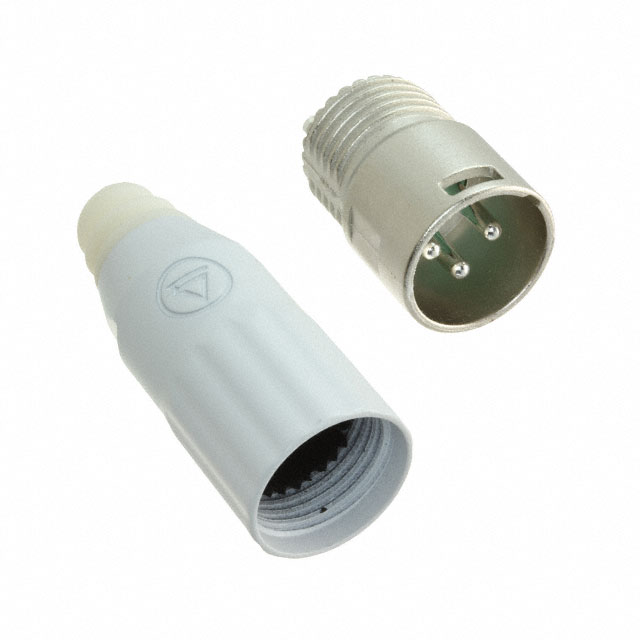

CONN RCPT MALE XLR 3P SOLDER CUP

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT MALE XLR 3P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	AAA3MWZ

Applications	Audio, Industrial, Instrumentation, Medical
Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [diameter]	2.54 mm, 5.59 mm
Cable Opening [diameter]	0.1 in, 0.22 in
Color	White
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded
Voltage Rating	125 VAC

CONN RCPT MALE XLR 3P SOLDER CUP

Part	Voltage Rating	Current Rating (Amps)	Color	Orientation	Cable Opening [diameter]	Cable Opening [diameter]	Shell Size - Insert	Contact Material	Contact Finish - Mating	Insert Material	Applications	Primary Material	Mounting Type	Shielding	Backshell Material, Plating	Features	Fastening Type	Connector Type	Shell Material	Shell Finish
Switchcraft Inc. AAA3MWZ	125 VAC	15 A	White	Keyed	2.54 mm, 5.59 mm	0.1 in, 0.22 in	XLR	Copper Alloy	Silver	Thermoplastic	Audio, Industrial, Instrumentation, Medical	Metal	Free Hanging (In-Line)	Shielded	Nickel, Zinc Alloy	Backshell, Cable Clamp, Ground, Strain Relief	Latch Lock	Male Pins, Receptacle	Zinc Alloy	Nickel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Receptacle, Male Pins Solder Cup
