Q-1V01D000R012i

Active

Amphenol Custom Cable

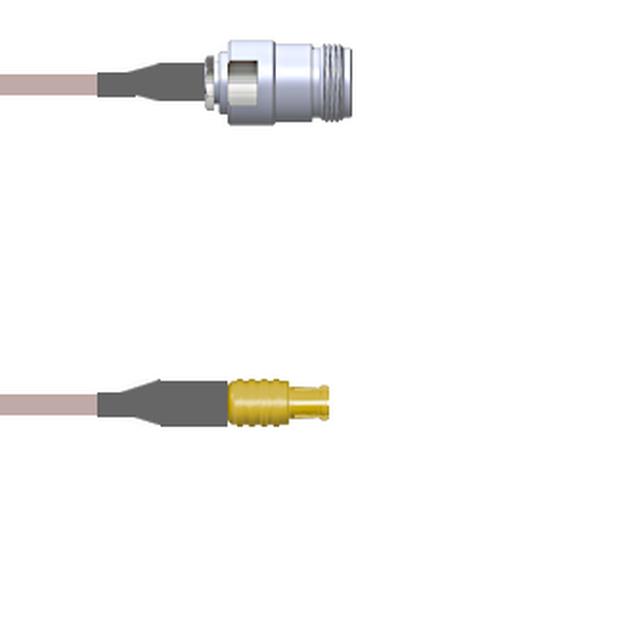

CBL ASSY MCX-NTYPE PLUG-JACK 12"

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V01D000R012i

Active

Amphenol Custom Cable

CBL ASSY MCX-NTYPE PLUG-JACK 12"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V01D000R012i

1st Connector	MCX Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	12 "
Length	304.8 mm
Overall Impedance	50 Ohms
Style	MCX to N-Type

Q-1V01D0 Series

Part	Overall Impedance	Frequency - Max [Max]	Color	2nd Contact Gender	1st Connector	2nd Connector	2nd Connector Mounting Type	1st Contact Gender	1st Connector Mounting Type	Length	Length	Length	Style	Cable Type	Features
Amphenol Custom Cable Q-1V01D000R001M	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	1 m	3.3 ft	39.4 in	MCX to N-Type	RG-316 DB	Shielded
Amphenol Custom Cable Q-1V01D000R009i	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	228.6 mm		9 "	MCX to N-Type	RG-316 DB	Shielded
Amphenol Custom Cable Q-1V01D000R.75M	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	750 mm		29.53 "	MCX to N-Type	RG-316 DB	Shielded
Amphenol Custom Cable Q-1V01D000R003M	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	3 m	9.8 '	118.1 in	MCX to N-Type	RG-316 DB	Shielded
Amphenol Custom Cable Q-1V01D000R002M	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	2 m	6.6 ft	78.7 in	MCX to N-Type	RG-316 DB	Shielded
Amphenol Custom Cable Q-1V01D000R060i	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	1.5 m	5 ft	5 '	MCX to N-Type	RG-316 DB	Shielded
Amphenol Custom Cable Q-1V01D000R072i	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	1.8 m	6 ft	72 in	MCX to N-Type	RG-316 DB	Shielded
Amphenol Custom Cable Q-1V01D000R024i	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	609.6 mm		24 "	MCX to N-Type	RG-316 DB	Shielded
Amphenol Custom Cable Q-1V01D000R012i	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	304.8 mm		12 "	MCX to N-Type	RG-316 DB	Shielded
Amphenol Custom Cable Q-1V01D000R1.5M	50 Ohms	6000 MHz	Copper	Female	MCX Plug	N-Type Jack	Free Hanging (In-Line)	Male	Free Hanging (In-Line)	1.5 m	4.9 ft	59.1 in	MCX to N-Type	RG-316 DB	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 162.50
		25	$ 161.22
		50	$ 159.93
		100	$ 158.65
		250	$ 157.36

Description

General part information

Q-1V01D0 Series

Cable Assembly Coaxial MCX to N-Type RG-316 DB 12.00" (304.80mm)

Documents

Technical documentation and resources

No documents available
