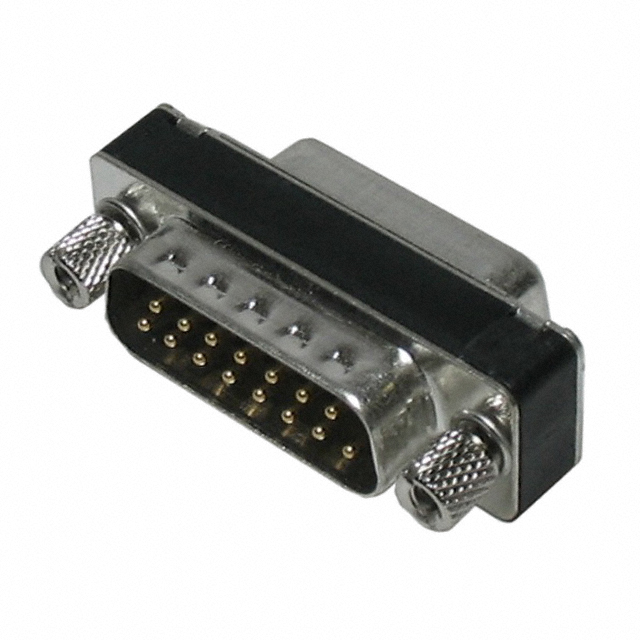

163C50019X

Active

Amphenol CONEC

CONN DSUB ADAPTER DB15F DB15M

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN DSUB ADAPTER DB15F DB15M

Technical Specifications

Parameters and characteristics for this part

Specification	163C50019X

Connector Style	Connector Saver
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Convert From (Adapter End)	D-Sub, 15 Pin Male
Convert To (Adapter End)	D-Sub, 15 Pin Female
Housing Color	Black
Includes	1 Connector, 2 Jack Screws
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2

Part	Housing Color	Number of Rows	Convert To (Adapter End)	Mounting Type	Material Flammability Rating	Connector Style	Convert From (Adapter End)	Contact Finish	Includes	Contact Finish Thickness	Contact Finish Thickness
Amphenol CONEC 163C50019X	Black	2	D-Sub 15 Pin Female	Free Hanging (In-Line)	UL94 V-0	Connector Saver	D-Sub 15 Pin Male	Gold	1 Connector 2 Jack Screws	0.76 Ám	30 Áin
Amphenol CONEC 163C50009X	Black	2		Free Hanging (In-Line)	UL94 V-0	Connector Saver	D-Sub 9 Pin Male	Gold	1 Connector 2 Jack Screws	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Connector D-Sub, 15 Pin Female To D-Sub, 15 Pin Male Free Hanging (In-Line)
