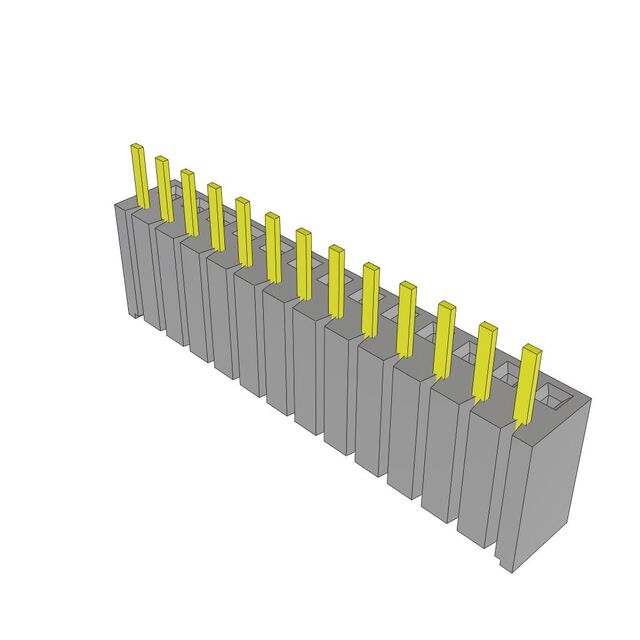

BSW-113-24-S-S

Active

Samtec Inc.

CONN RCPT 13POS 0.1 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BSW-113-24-S-S

Active

Samtec Inc.

CONN RCPT 13POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BSW-113-24-S-S

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Length - Post	4.32 mm
Contact Length - Post	0.17 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [custom]	0.35 in
Insulation Height [custom]	8.89 mm
Insulation Material	Polyethylene Terephthalate (PET), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Bottom Mount
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Termination	Solder

BSW-113 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Fastening Type	Insulation Color	Connector Type	Number of Rows	Termination	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Number of Positions Loaded	Insulation Material	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Number of Positions	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Shape	Mounting Type	Contact Length - Post [x]	Contact Length - Post [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Samtec Inc. BSW-113-04-G-S	0.51 µm	20 µin	Female Socket	Push-Pull	Black	Receptacle	1	Solder	UL94 V-0	-55 °C	125 °C	4.32 mm	0.17 in	Gold	All	Polyethylene Terephthalate (PET) Glass Filled	0.35 in	8.89 mm	Phosphor Bronze	13	Tin	0.1 in	2.54 mm	Square	Bottom Mount Through Hole
Samtec Inc. BSW-113-04-T-S			Female Socket	Push-Pull	Black	Breakaway Receptacle	1	Solder	UL94 V-0	-55 °C	105 ░C	4.32 mm	0.17 in		All	Polyethylene Terephthalate (PET) Glass Filled	0.35 in	8.89 mm	Phosphor Bronze	13	Tin	0.1 in	2.54 mm	Square	Bottom Mount Through Hole
Samtec Inc. BSW-113-04-S-S	0.76 Ám	30 Áin	Female Socket	Push-Pull	Black	Breakaway Receptacle	1	Solder	UL94 V-0	-55 °C	125 °C	4.32 mm	0.17 in	Gold	All	Polyethylene Terephthalate (PET) Glass Filled	0.35 in	8.89 mm	Phosphor Bronze	13	Tin	0.1 in	2.54 mm	Square	Bottom Mount Through Hole
Samtec Inc. BSW-113-04-S-D	0.76 Ám	30 Áin	Female Socket	Push-Pull	Black	Breakaway Receptacle	2	Solder	UL94 V-0	-55 °C	125 °C			Gold	All	Polyethylene Terephthalate (PET) Glass Filled	0.35 in	8.89 mm	Phosphor Bronze	26	Tin	0.1 in	2.54 mm	Square	Bottom Mount Through Hole	0.165 in	4.19 mm	2.54 mm	0.1 in
Samtec Inc. BSW-113-24-S-S	0.76 Ám	30 Áin	Female Socket	Push-Pull	Black	Receptacle	1	Solder	UL94 V-0	-55 °C	125 °C	4.32 mm	0.17 in	Gold	All	Polyethylene Terephthalate (PET) Glass Filled	0.35 in	8.89 mm	Phosphor Bronze	13	Tin	0.1 in	2.54 mm	Square	Bottom Mount Through Hole
Samtec Inc. BSW-113-24-G-D	0.51 µm	20 µin	Female Socket	Push-Pull	Black	Breakaway Receptacle	2	Solder	UL94 V-0	-55 °C	125 °C			Gold	All	Polyethylene Terephthalate (PET) Glass Filled	0.35 in	8.89 mm	Phosphor Bronze	26	Tin	0.1 in	2.54 mm	Square	Bottom Mount Through Hole	0.165 in	4.19 mm	2.54 mm	0.1 in
Samtec Inc. BSW-113-04-L-D	0.25 çm	10 çin	Female Socket	Push-Pull	Black	Breakaway Receptacle	2	Solder	UL94 V-0	-55 °C	125 °C			Gold	All	Polyethylene Terephthalate (PET) Glass Filled	0.35 in	8.89 mm	Phosphor Bronze	26	Tin	0.1 in	2.54 mm	Square	Bottom Mount Through Hole	0.165 in	4.19 mm	2.54 mm	0.1 in
Samtec Inc. BSW-113-24-G-S	0.51 µm	20 µin	Female Socket	Push-Pull	Black	Breakaway Receptacle	1	Solder	UL94 V-0	-55 °C	125 °C	4.32 mm	0.17 in	Gold	All	Polyethylene Terephthalate (PET) Glass Filled	0.35 in	8.89 mm	Phosphor Bronze	13	Tin	0.1 in	2.54 mm	Square	Bottom Mount Through Hole
Samtec Inc. BSW-113-04-G-D	0.51 µm	20 µin	Female Socket	Push-Pull	Black	Breakaway Receptacle	2	Solder	UL94 V-0	-55 °C	125 °C			Gold	All	Polyethylene Terephthalate (PET) Glass Filled	0.35 in	8.89 mm	Phosphor Bronze	26	Tin	0.1 in	2.54 mm	Square	Bottom Mount Through Hole	0.165 in	4.19 mm	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.96

Description

General part information

BSW-113 Series

13 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Bottom Mount Gold
