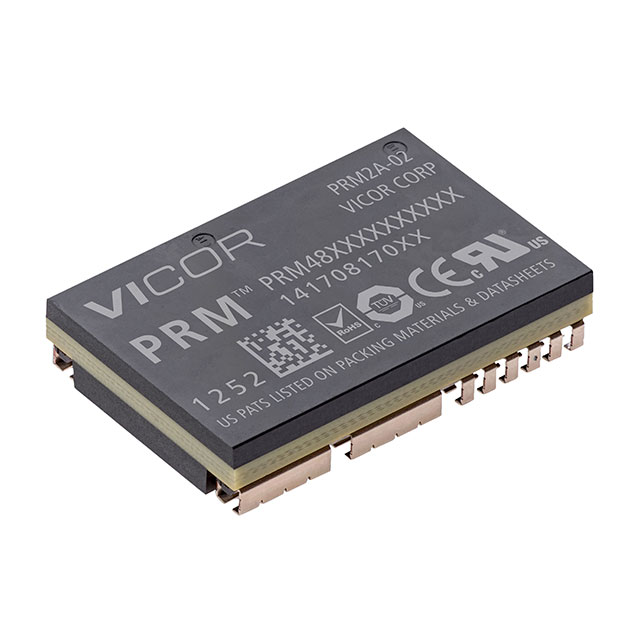

Specification	PRM48AT480M400A00

Applications	ITE (Commercial)
Current - Output (Max)	8.33 A
Efficiency	97.5 %
Features	Remote On/Off, UVLO
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	16-DIP Module
Power (Watts)	400 W
Size / Dimension Height	0.26 in
Size / Dimension Length	1.28 in
Size / Dimension Width	0.87 in
Type	Pre-Regulator Module
Voltage - Input (Max)	75 V
Voltage - Input (Min)	36 V
Voltage - Output 1	48 V

PRM48 Series

Part	Applications	Features	Voltage - Input (Min)	Voltage - Input (Max)	Type	Voltage - Output 1	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Current - Output (Max)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Number of Outputs	Efficiency	Power (Watts)
Vicor Corporation PRM48BF480M600A00	ITE (Commercial)	OCP OTP OVP SCP UVLO	38 V	55 V	Pre-Regulator Module	48 V	Module	125 °C	-40 °C	Surface Mount	12.5 A	0.87 in	1.28 in	0.26 in	1	97.6 %	600 W
Vicor Corporation PRM48BT480M500A00	ITE (Commercial)	Remote On/Off UVLO	38 V	55 V	Pre-Regulator Module	48 V	16-DIP Module	125 °C	-55 °C	Through Hole	10.42 A	0.87 in	1.28 in	0.26 in	1	97.8 %	500 W
Vicor Corporation PRM48JH480M250A00	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	45 V	55 V	Pre-Regulator Module	48 V	Module	125 °C	-55 °C	Surface Mount	5.21 A	0.65 in	0.87 in	0.27 in	1	96.7 %	250 W
Vicor Corporation PRM48BF480T600A00	ITE (Commercial)	OCP OTP OVP SCP UVLO	38 V	55 V	Pre-Regulator Module	48 V	Module	125 °C	-40 °C	Surface Mount	12.5 A	0.87 in	1.28 in	0.26 in	1	97.6 %	600 W
Vicor Corporation PRM48AT480M400A00	ITE (Commercial)	Remote On/Off UVLO	36 V	75 V	Pre-Regulator Module	48 V	16-DIP Module	125 °C	-55 °C	Through Hole	8.33 A	0.87 in	1.28 in	0.26 in	1	97.5 %	400 W
Vicor Corporation PRM48BF480T400B00	ITE (Commercial)	OCP OTP OVP SCP UVLO	38 V	55 V	Pre-Regulator Module	48 V	Module	125 °C	-40 °C	Surface Mount	11 A	0.87 in	1.28 in	0.26 in	1	97 %	400 W
Vicor Corporation PRM48AH480M200A00	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	36 V	75 V	Pre-Regulator Module	48 V	Module	125 °C	-55 °C	Surface Mount	4.17 A	0.65 in	0.87 in	0.27 in	1	96.7 %	200 W
Vicor Corporation PRM48AH480T200A00	ITE (Commercial)	Remote On/Off UVLO	36 V	75 V	Pre-Regulator Module	48 V	Module	125 °C	-40 °C	Surface Mount	4.17 A	0.65 in	0.87 in	0.26 in	1	96.7 %	200 W
Vicor Corporation PRM48JF480M500A00	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	45 V	55 V	Pre-Regulator Module	48 V	Module	125 °C	-55 °C	Surface Mount	10.42 A	0.87 in	1.28 in	0.26 in	1	97.8 %	500 W
Vicor Corporation PRM48BH480M250A00	ITE (Commercial)	OCP OTP OVP Remote On/Off SCP UVLO	38 V	55 V	Pre-Regulator Module	48 V	Module	125 °C	-55 °C	Surface Mount	5.21 A	0.65 in	0.87 in	0.26 in	1	96.7 %	250 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Datasheet
