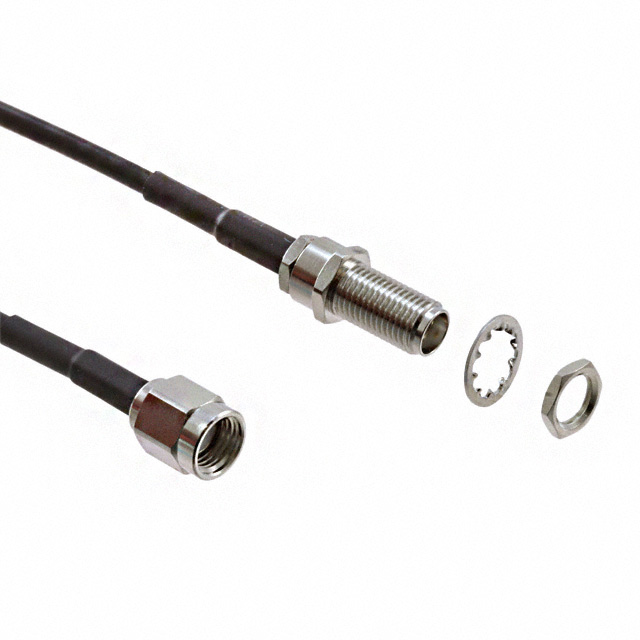

CSA-RPSM-216-SAFB

Active

TE Connectivity Linx

CBL ASSY RPSMA-SMA PLG-JACK 8.5"

Search across all available documentation for this part.

Active

TE Connectivity Linx

CBL ASSY RPSMA-SMA PLG-JACK 8.5"

Technical Specifications

Parameters and characteristics for this part

Specification	CSA-RPSM-216-SAFB

1st Connector	RP-SMA Plug
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	SMA Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type	RG-174
Color	Black
Features	Shielded
Overall Impedance	50 Ohms
Style	RP-SMA to SMA

Part	1st Connector Mounting Feature	Features	1st Contact Gender	1st Connector Mounting Type	Color	2nd Connector Mounting Type	Overall Impedance	1st Connector	Cable Type	Style	2nd Contact Gender	Cable Impedance	2nd Connector
TE Connectivity Linx CSA-RPSM-216-SAFB	Bulkhead - Front Side Nut	Shielded	Female	Panel Mount	Black	Free Hanging (In-Line)	50 Ohms	RP-SMA Plug	RG-174	RP-SMA to SMA	Female	50 Ohms	SMA Jack
TE Connectivity Linx CSA-RPSM-216-RSFB	Bulkhead - Front Side Nut	Shielded	Male	Panel Mount	Black			RP-SMA Jack	RG-174	RP-SMA to RP-SMA	Female	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial RP-SMA to SMA RG-174 8.500" (215.90mm)

Technical documentation and resources

No documents available
