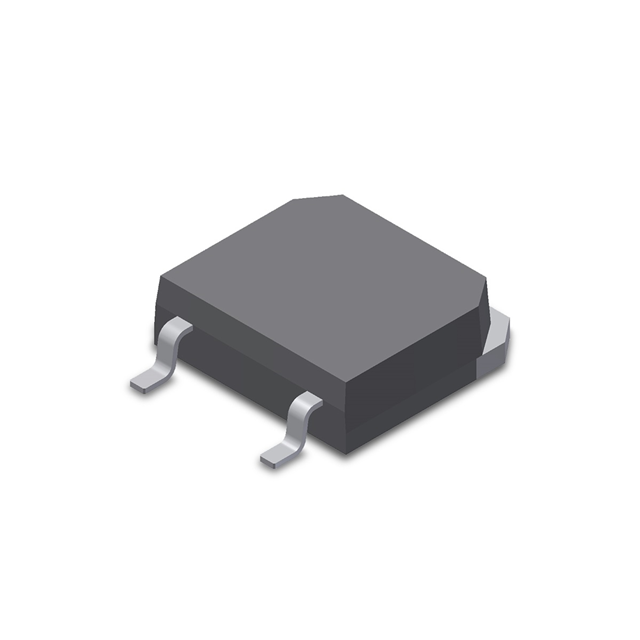

IXYT40N120A4HV

Active

IXYS

IGBT PT 1200V 140A TO268HV

Search across all available documentation for this part.

Active

IXYS

IGBT PT 1200V 140A TO268HV

Technical Specifications

Parameters and characteristics for this part

Specification	IXYT40N120A4HV

Current - Collector (Ic) (Max) [Max]	140 A
Current - Collector Pulsed (Icm)	275 A
Gate Charge	90 nC
IGBT Type	PT
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C
Package / Case	D3PAK (2 Leads + Tab), TO-268AA, TO-268-3
Power - Max [Max]	600 W
Supplier Device Package	TO-268HV (IXYT)
Switching Energy	3.75 mJ, 2.3 mJ
Td (on/off) @ 25°C	204 ns, 22 ns
Test Condition	5 Ohm, 600 V, 15 V, 32 A
Vce(on) (Max) @ Vge, Ic	1.8 V
Voltage - Collector Emitter Breakdown (Max) [Max]	1200 V

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Gate Charge	Test Condition	Td (on/off) @ 25°C	Supplier Device Package	Power - Max [Max]	IGBT Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Switching Energy	Current - Collector Pulsed (Icm)	Vce(on) (Max) @ Vge, Ic	Package / Case	Current - Collector (Ic) (Max) [Max]
IXYS IXYT40N120A4HV	Surface Mount	-55 °C	175 ░C	90 nC	5 Ohm 15 V 32 A 600 V	22 ns 204 ns	TO-268HV (IXYT)	600 W	PT	1200 V	2.3 mJ 3.75 mJ	275 A	1.8 V	D3PAK (2 Leads + Tab) TO-268-3 TO-268AA	140 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	300	$ 7.66

General part information

IGBT PT 1200 V 140 A 600 W Surface Mount TO-268HV (IXYT)
